Tr6060 Manual Transmission (Service Information): Assembly: MAINSHAFT

Courtesy of CHRYSLER GROUP, LLC

Install third gear bearing (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC
Install third gear bearing spacer (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC

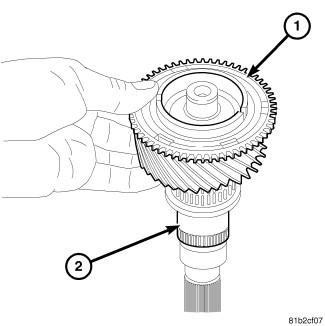

Install third gear (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC

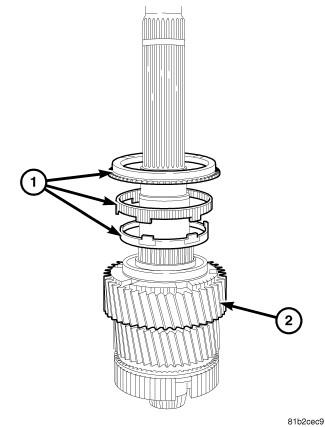

Install third gear synchronizer rings (1) on third gear (2).

Courtesy of CHRYSLER GROUP, LLC

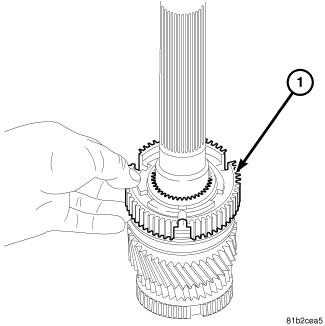

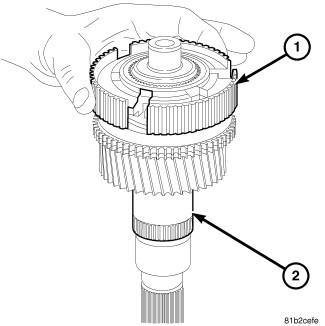

Install 3-4 synchronizer hub (1) on mainshaft (2).
CAUTION:
Synchronizer rings must be aligned with synchronizer hub and third gear during installation. Failure to follow these instructions will result in damage to the synchronizer rings.

Courtesy of CHRYSLER GROUP, LLC

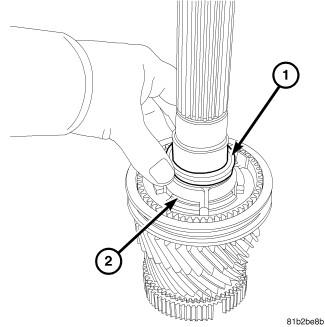

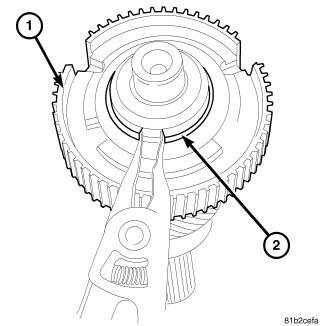

Install 3-4 synchronizer hub (1) snap ring (2) on mainshaft.

Courtesy of CHRYSLER GROUP, LLC

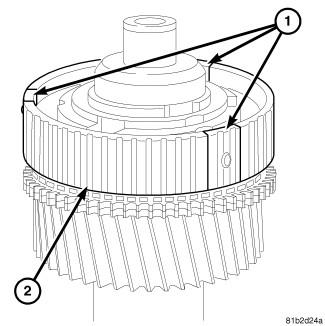

Install synchronizer detents (1) in 3-4 synchronizer hub (2).
NOTE:
1-2 and 3-4 synchronizer detents are the same.

Courtesy of CHRYSLER GROUP, LLC

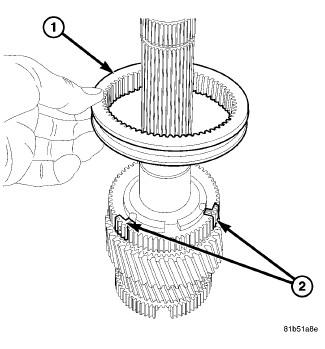

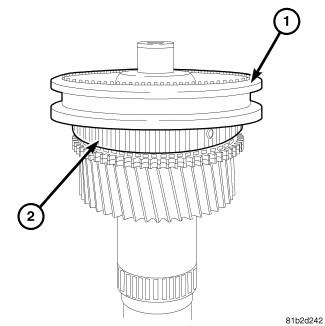

Install 3-4 synchronizer sleeve (1) on 3-4 synchronizer hub (2).

Courtesy of CHRYSLER GROUP, LLC

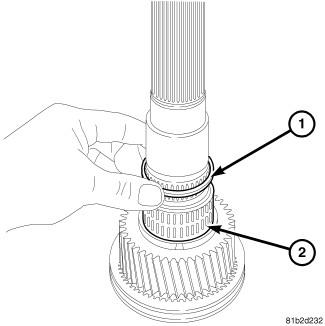

Install second gear bearing (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC

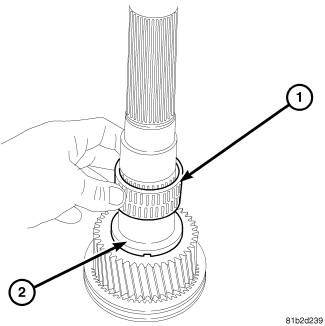

Install second gear bearing spacer (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC

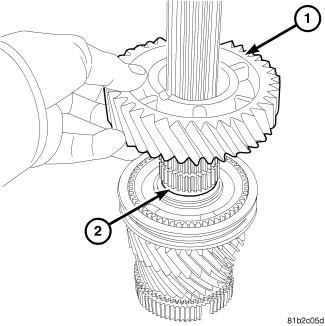

Install second gear (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC

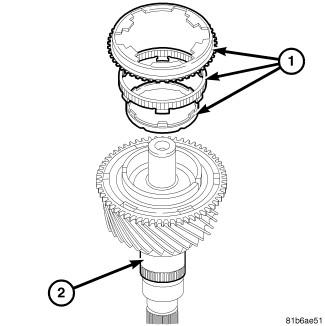

With asymmetric gaps upward, install second gear synchronizer (Black Carbon) rings (1) on second gear (2).

Courtesy of CHRYSLER GROUP, LLC
Install 1-2 synchronizer hub (1) on mainshaft (2).
CAUTION:
Synchronizer rings must be aligned with synchronizer hub and second gear during installation. Failure to follow these instructions will result in damage to the synchronizer rings.

Courtesy of CHRYSLER GROUP, LLC
With beveled side up, install 1-2 synchronizer hub sleeve (1) and detents (2).
NOTE:
1-2 and 3-4 synchronizer detents are the same.

Courtesy of CHRYSLER GROUP, LLC

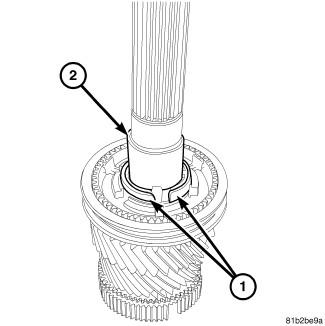

Install 1-2 synchronizer hub split rings (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC

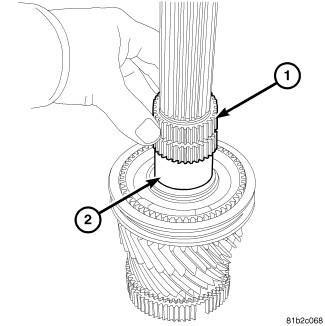

Install 1-2 synchronizer hub split rings retainer (1) on split rings (2).

Courtesy of CHRYSLER GROUP, LLC
Install first gear synchronizer rings (1) on 1-2 synchronizer hub (2).

Courtesy of CHRYSLER GROUP, LLC

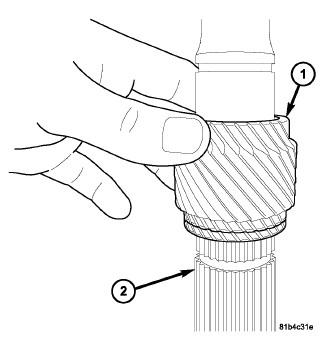

Install first gear bearing (1) on mainshaft (2).

Courtesy of CHRYSLER GROUP, LLC
Install first gear (1) on mainshaft (2).
CAUTION:
Synchronizer rings must be aligned with synchronizer hub and first gear during installation. Failure to follow these instructions will result in damage to the synchronizer rings.

Courtesy of CHRYSLER GROUP, LLC

WARNING:
Use tongs or welding gloves when handling heated components. Failure to follow these instructions will result in personal injury.

CAUTION:
Bearings (1) are installed using a Bearing Heater (2). Use only a bearing heater/hot plate and follow manufacturer's instructions. Heat components to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit). Never use an open flame to heat components. Never leave components on heater for an extended amount of time. If component is discolored after heating, the component has been overheated and must not be used. Failure to follow these instructions will result in component damage.
Heat mainshaft case bearing to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit) and install on mainshaft with tongs or welding gloves.

Courtesy of CHRYSLER GROUP, LLC
Position sixth gear (1) on mainshaft (2).
Install sixth gear on mainshaft with Installer (special tool #9391, Installer, Gear).
