Input Shaft

GC0083331Courtesy of CHRYSLER GROUP, LLC
WARNING:

Use tongs or welding gloves when handling heated components. Failure to follow these instructions will result in personal injury.

CAUTION:

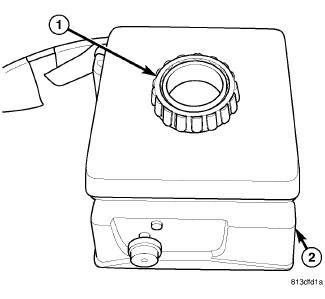

Bearings (1) are installed using a Bearing Heater (2). Use only a bearing heater/hot plate and follow manufacture's instructions. Heat components to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit). Never use an open flame to heat components. Never leave components on heater for an extended amount of time. If component is discolored after heating, the component has been overheated and must not be used. Failure to follow these instructions will result in component damage.

GC0135923Courtesy of CHRYSLER GROUP, LLC
  1. Heat input shaft bearing to 100 - 149 Celsius (212° Min. - 300° Max Fahrenheit) and install bearing (1) on input shaft (2) with tongs or welding gloves.
