Clutch System: Flywheel: Removal

  1. Remove the transmission and bellhousing.
  2. Remove the clutch. Refer to DISC, CLUTCH, REMOVAL .

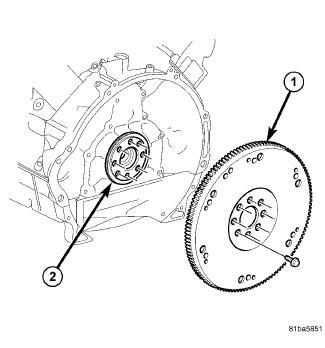

    GC0135210Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts holding the flywheel (1) to the crankshaft flange (2).
  4. Separate the flywheel from the vehicle.
