Power Inverter Module - Installation






INSTALLATION

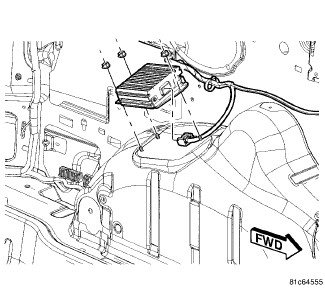

1. Install the inverter module and install the mounting fasteners.
2. Connect the electrical connector.
3. Install the left rear quarter trim panel. Quarter Trim Panel - Installation.
4. Connect the battery negative cable.
