Adjuster, Seat Belt Turning Loop: Installation: Installation
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

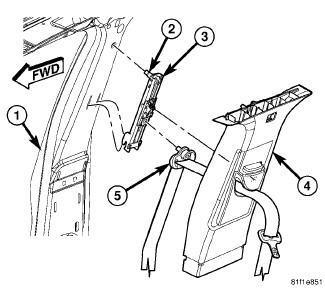

- Position the seat belt turning loop height adjuster (3) to the upper inner B-pillar (1).
- Engage the tabs at the bottom of the height adjuster into the slots in the B-pillar.
- Install and tighten the screw (2) that secures the height adjuster to the B-pillar. Tighten the screw to 58 N.m (43 ft. lbs.).
- Position the seat belt turning loop onto the height adjuster on the upper B-pillar. Be certain the seat belt webbing is not twisted between the turning loop and the web guide or between the turning loop and the lower anchor.
- Install and tighten the screw (2) that secures the turning loop to the height adjuster. Tighten the screw to 37 N.m (27 ft. lbs.).
- Reinstall the upper trim (4) onto the inside of the B-pillar. Refer to PANEL, B-PILLAR TRIM, INSTALLATION .
