Generator - Installation

3.6L

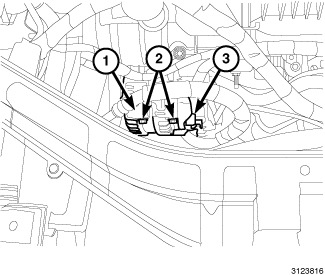

1. Position the generator (1) onto the engine mounting bracket.
2. Install the lower mounting bolt and the two upper mounting bolts (3) to generator (1). Tighten bolts to 42 Nm (31 ft. lbs.).
3. Connect the field wire connector (3) to the generator.
4. Install B+ terminal and nut to generator mounting stud. Tighten nut to 10 Nm (88.5 in. lbs.)
5. Snap the plastic protective cover over the B+ terminal.

6. Raise and support the vehicle.

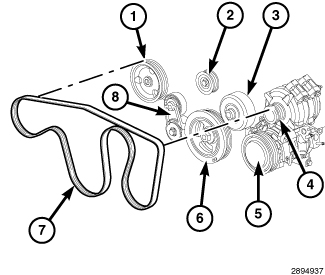

7. Install the accessory drive belt. Serpentine Accessory Drive Belt - Installation.

8. Install the inner splash shield.
9. Install the right front wheel.
10. Lower the vehicle.
11. Connect negative battery cable, tighten nut to 4.5 Nm (40 in. lbs.).
12. Start the engine and verify the generator is functioning properly.
