Wheel Alignment

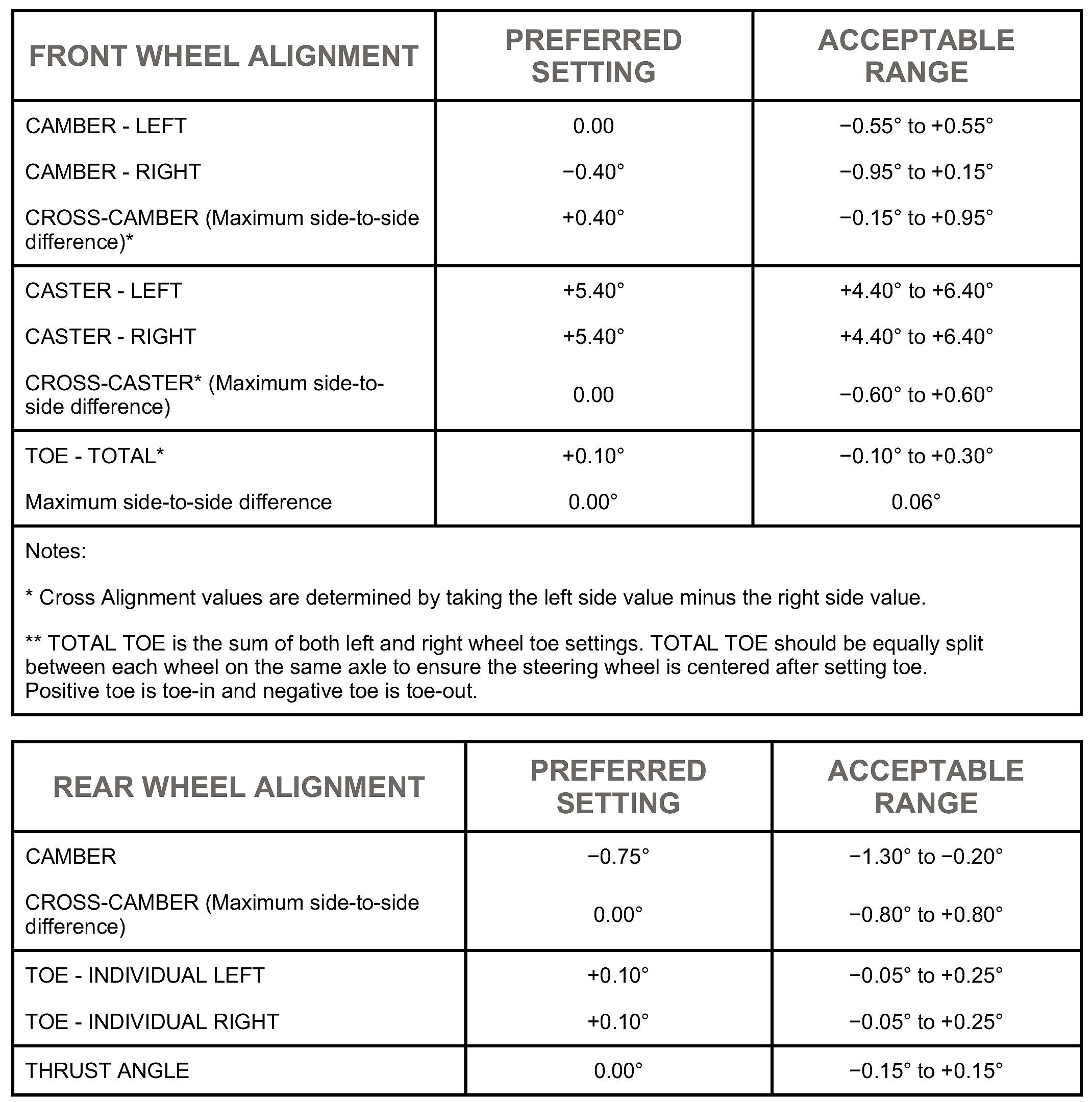

WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height.

ALL-WHEEL-DRIVE:





ALL-WHEEL-DRIVE

POLICE PACKAGE:





POLICE PACKAGE
