Charging System (Service Information): Generator: Installation: 2.8L

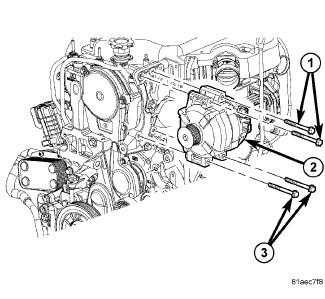

Fig 1: Generator 2.8L

Courtesy of CHRYSLER GROUP, LLC

Position generator (2) to engine and install four mounting bolts (3) and (1). Tighten all bolts to 28 N.m (21 ft. lbs.).

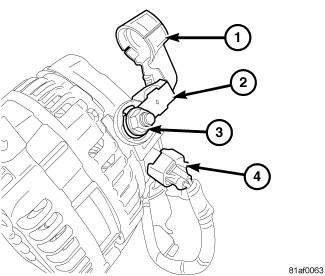

Fig 2: Alternator/Generator Electrical Connection
Courtesy of CHRYSLER GROUP, LLC
Connect field wire connector (4) into generator.
Install B+ terminal (2) and nut (3) to generator mounting stud. Tighten nut to 13 N.m (115 in. lbs.)
Snap plastic protective cover (1) to B+ terminal.
Install drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
Connect the negative battery cable, tighten the nut to 5 N.m (45 in. lbs.).
