Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

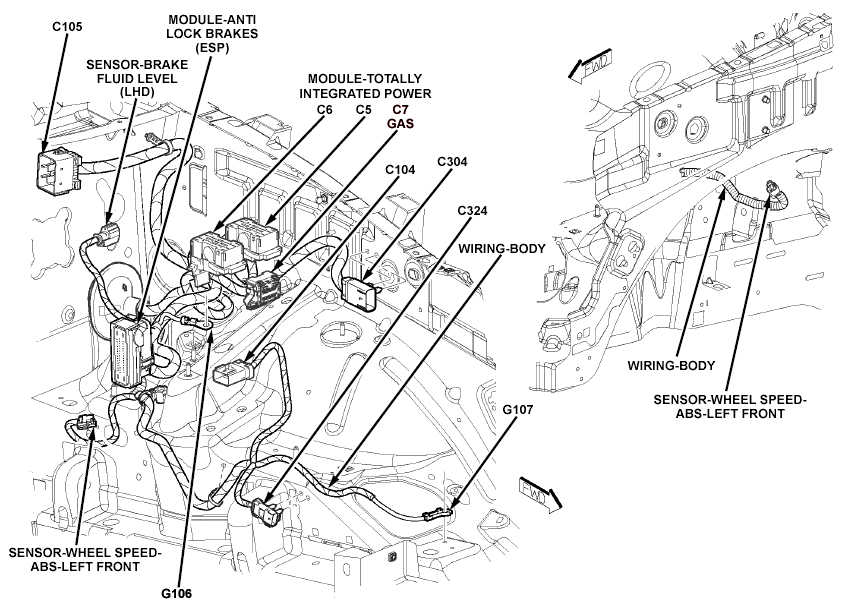

| Anti-Lock Brakes (EPS) Module | Left side of engine compartment. See Figure. |

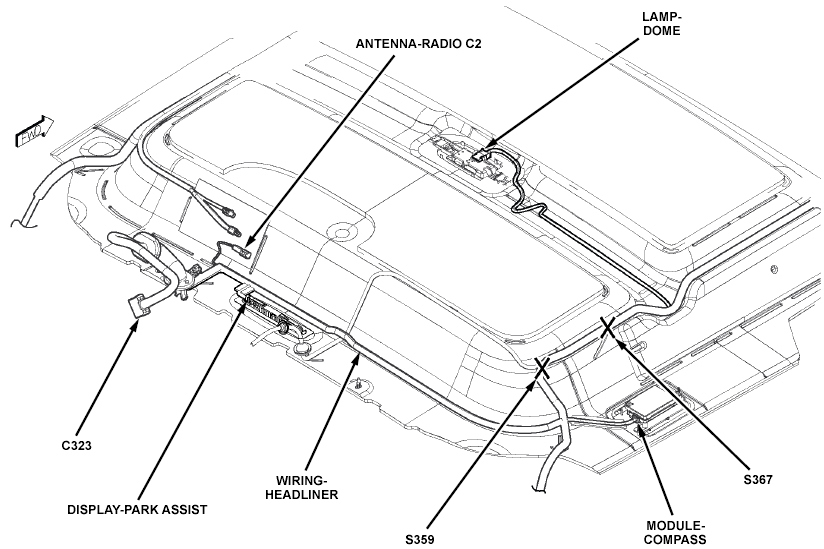

| Compass Module | Right rear of headliner. See Figure. |
| Fuel Pump Module | In fuel tank. |

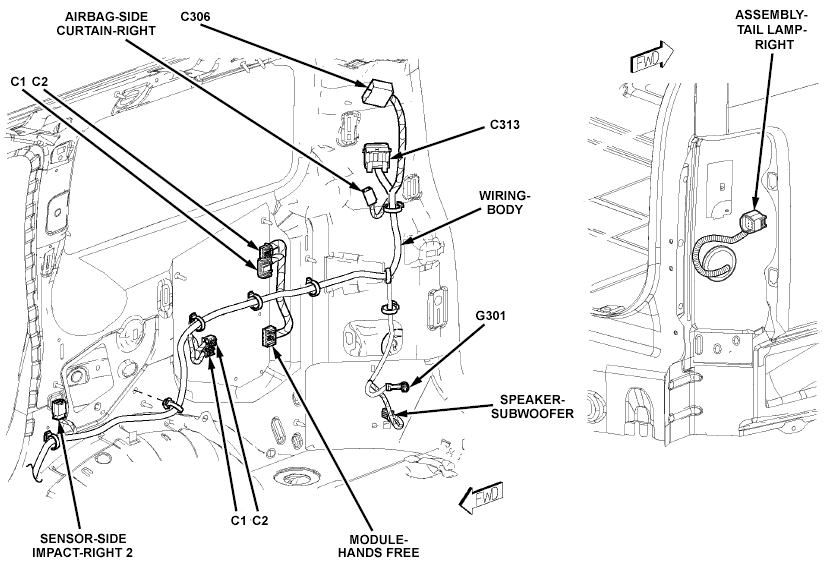

| Hands Free Module | Right quarterpanel. See Figure. |

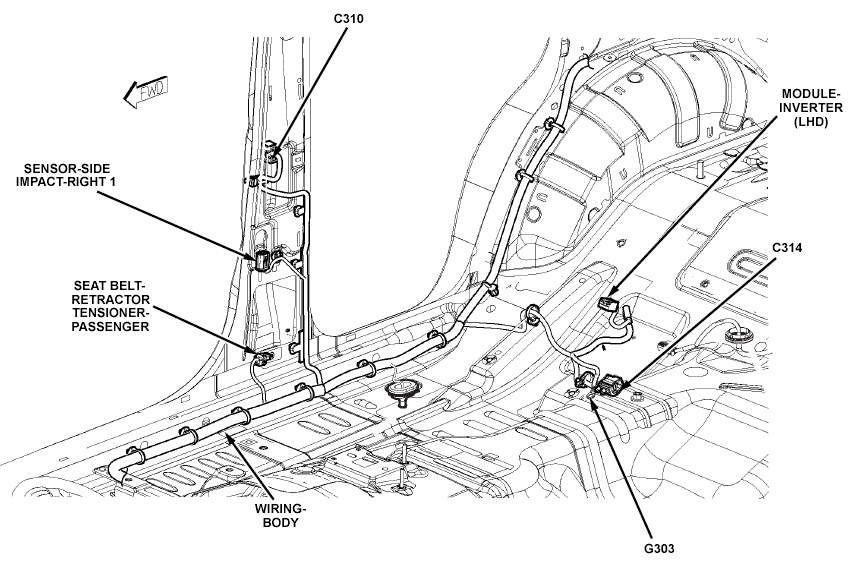

| Inverter Module | Under right side of rear seat. See Figure. |
| Occupant Classification Module | Under front passenger's seat. |

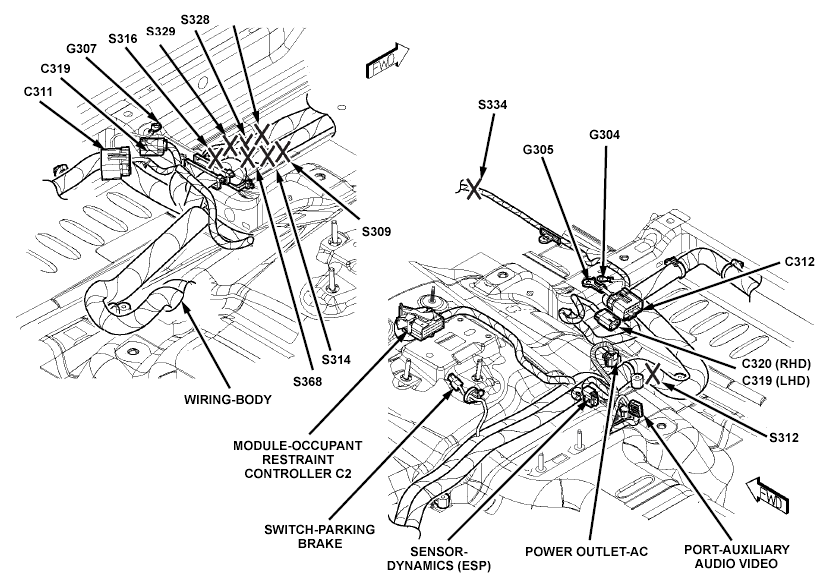

| Occupant Restraint Controller Module | Under center console. See Figure. |
| Park Assist (Parktronics) Module | Right quarterpanel. |
| Powertrain Control Module | Right rear of engine compartment. |

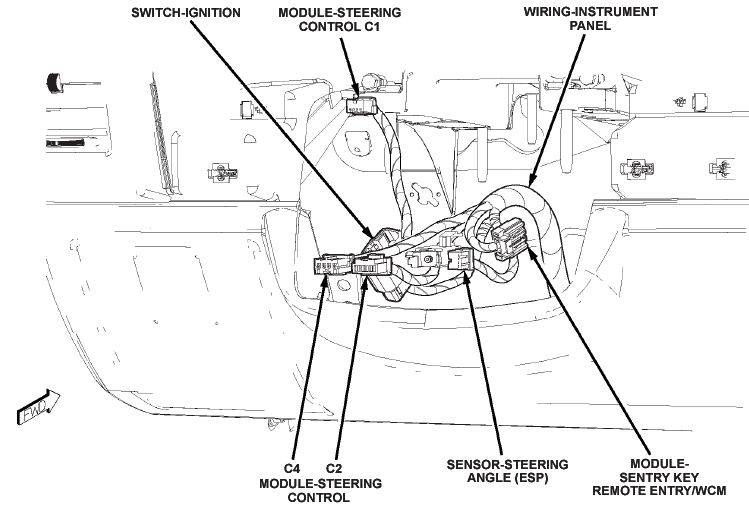

| Sentry Key Remote Entry/WCM Module | On steering column. See Figure. |

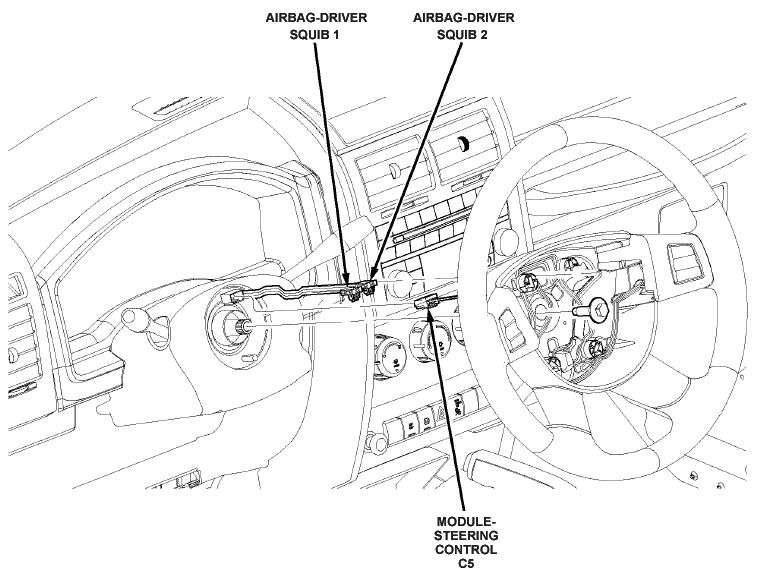

| Steering Control Module | On steering column. See Figure. |

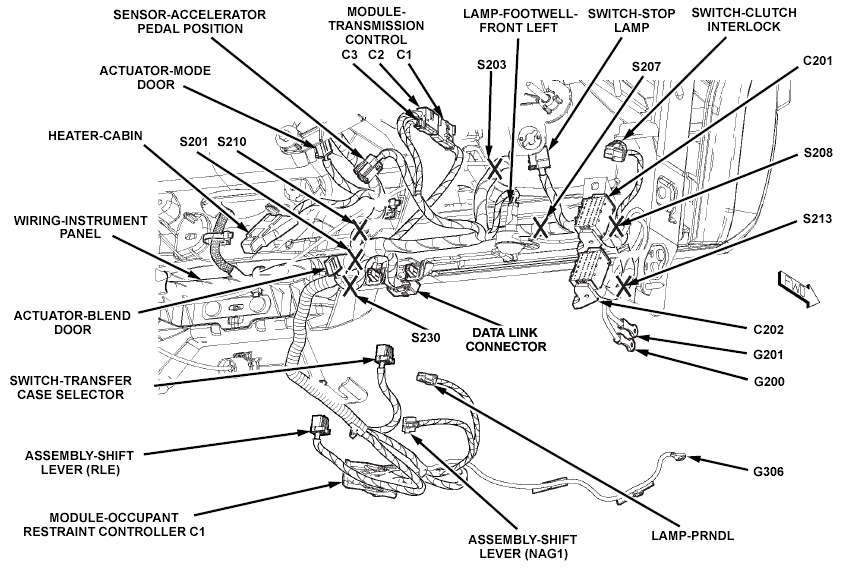

| Transmission Control Module | Left side of dash. See Figure. |
