P2181-Cooling System Performance: Notes

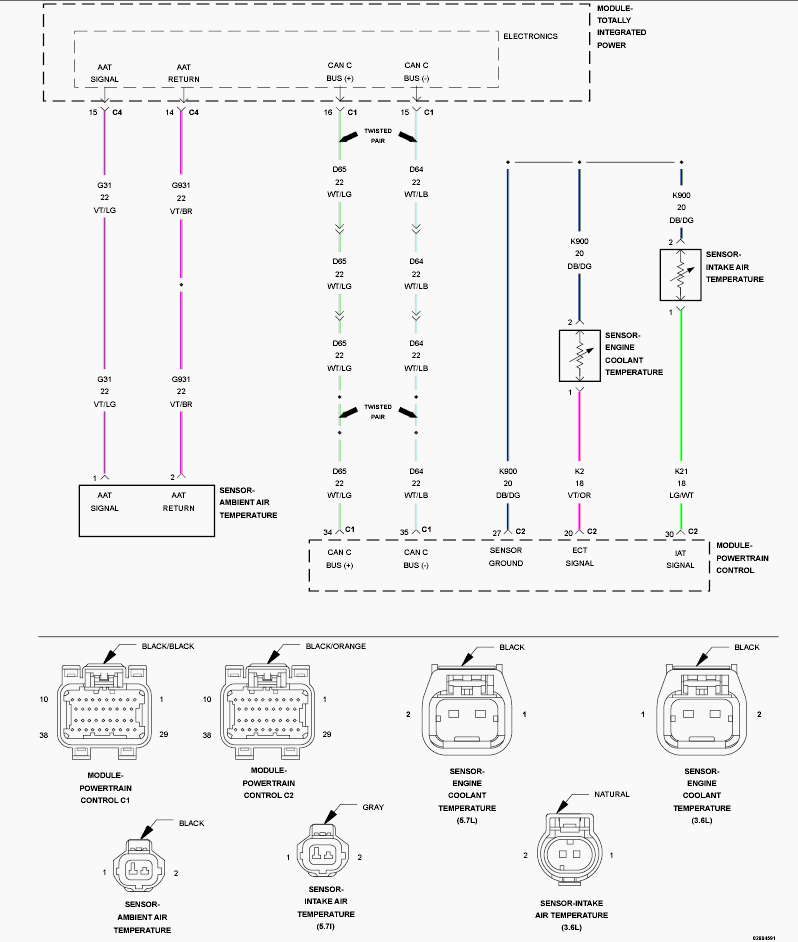

Fig 1: AAT, ECT & IAT Sensors Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
