PUMP, Water, Afterrun: Installation: Installation
Courtesy of CHRYSLER LLC

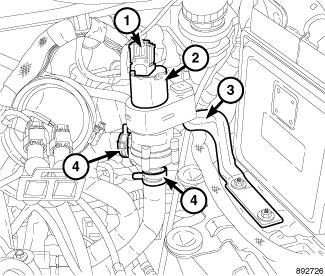

- Position the after run pump (2) onto the mounting brcaket (3).
- Connect the two coolant hoses (4) to the after run pump (2).
- Connect the after run pump electrical connector (1).
- Install the air cleaner housing. Refer to BODY, Air Cleaner, Installation
or BODY, Air Cleaner, Installation
.
- Install the negative battery cable.
- Fill the cooling system Refer to Standard Procedure .
