BOTTLE, Coolant Recovery: Installation: Installation

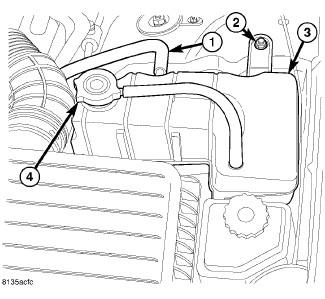

Fig 1: COOLANT RECOVERY CONTAINER
GC0095202Courtesy of CHRYSLER LLC
1 - COOLANT RECOVER TUBE
2 - NUT
3 - COOLANT RECOVERY CONTAINER
3 - COOLANT RECOVERY PRESSURE CAP
  1. Position coolant recovery container (3).
  2. Install mounting nuts (2). Tighten to 10 N.m (89 in. lbs.).
  3. Install coolant recovery tube (1).
  4. Fill cooling system. See Cooling - Standard Procedure .
  5. Install coolant recovery container pressure cap (4).
