Checking The Engine Coolant Temperature Sensor Calibration: Notes

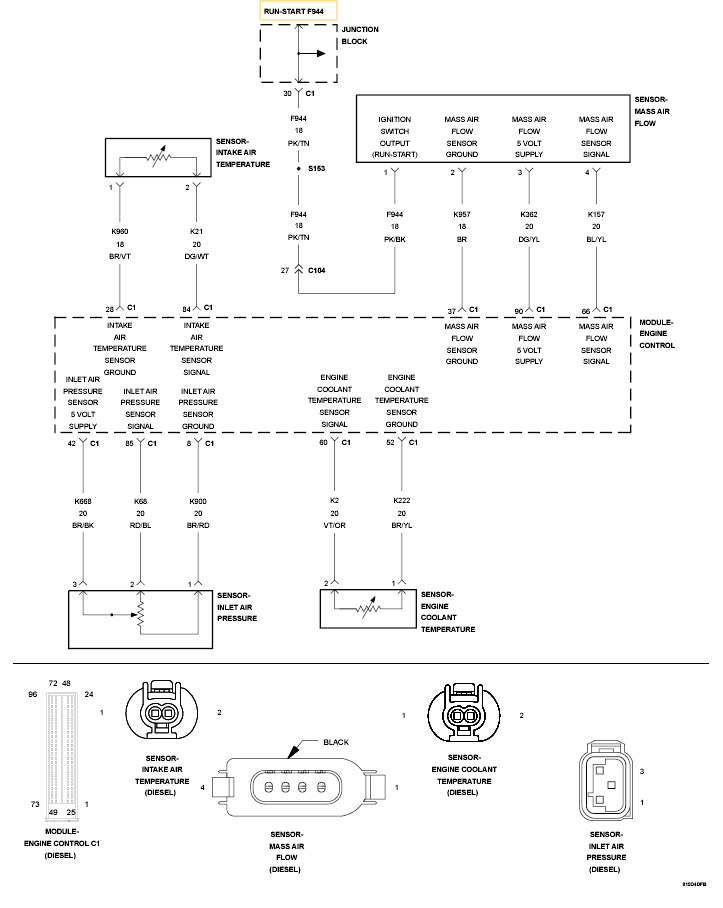

GC0119956Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
ECT SENSOR - COLD
ECT SENSOR - HOT
