Checking The EGR System: Notes

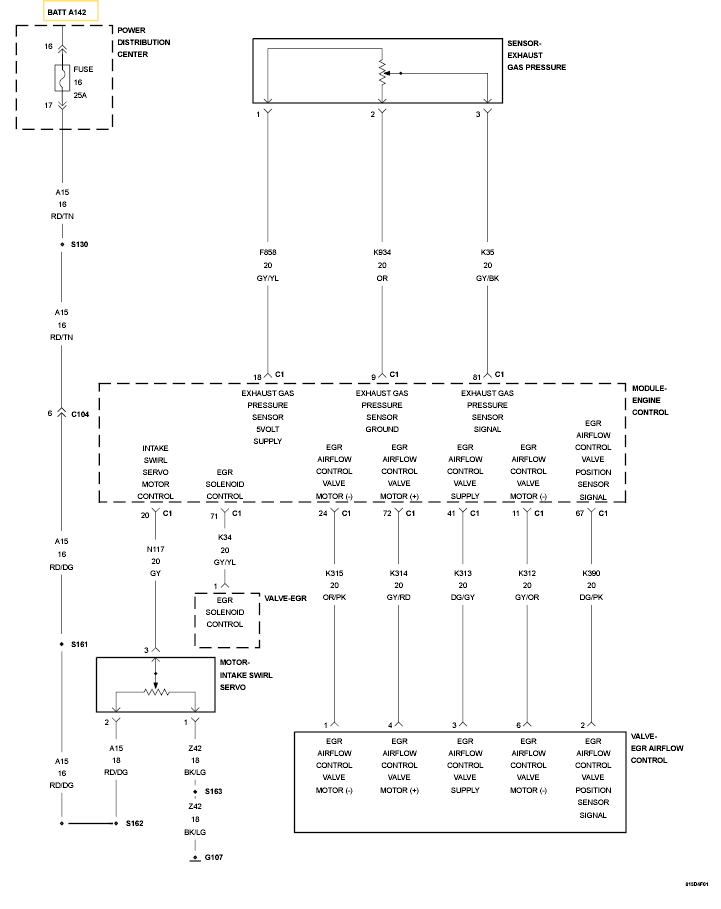

GC0120720Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
FUSED ASD RELAY OUTPUT CIRCUIT OPEN
EGR SOLENOID GROUND CIRCUIT OPEN
EGR AIRFLOW CONTROL VALVE
EGR SOLENOID/VALVE
INTAKE OR EXHAUST SYSTEM PROBLEM
