SWITCH, Speed Control: Installation: Installation

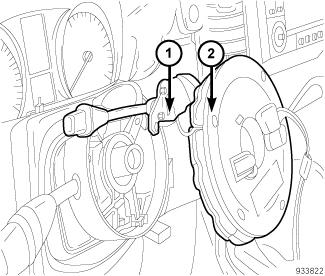

Fig 1: SPEED CONTROL SWITCH
GC0134041Courtesy of CHRYSLER LLC
  1. Install the speed control switch
  2. Install the switch mounting screw. Refer to SPECIFICATIONS  .
  3. Plug pigtail electrical connector into instrument panel wiring harness. Be sure wires are not pinched.
  4. Install the clockspring. Refer to Restraints/CLOCKSPRING - Installation
  5. Install negative battery cable to battery.
