DTC 9007: Terminal 15 Circuit Shorted Or Open: Notes

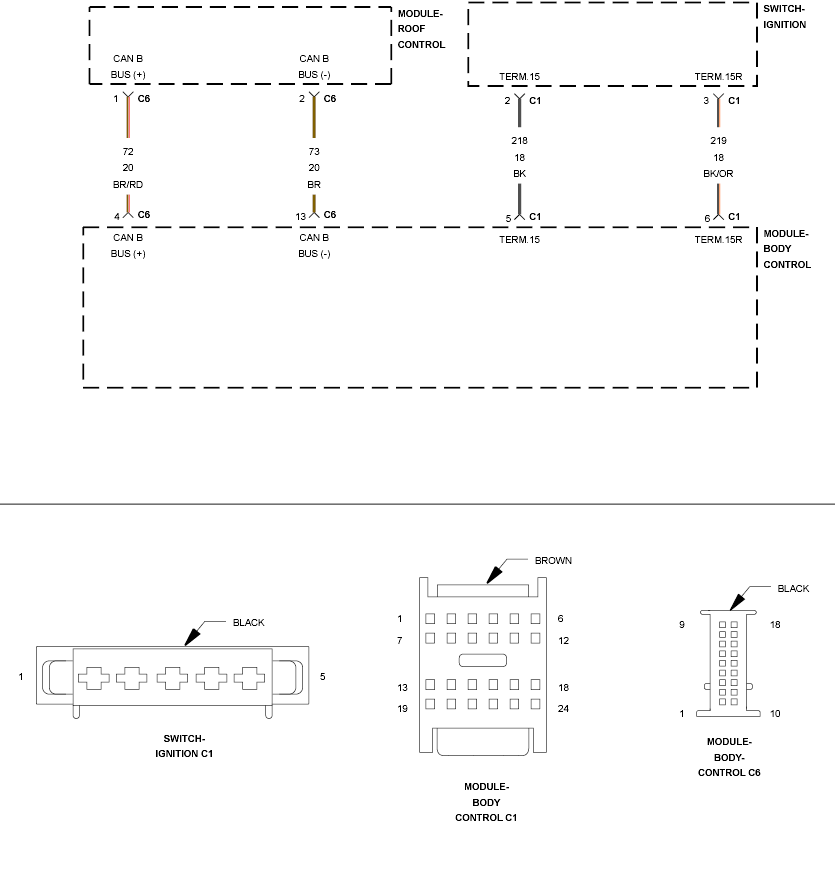

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the ignition on.
- Set Condition:
The actual value of the Terminal 15 circuit supplied by the Body Control Module (BCM) over the CAN Bus is implausible.
| Possible Causes |
|---|
| TERMINAL 15 CIRCUIT OPEN |
| TERMINAL 15 CIRCUIT SHORTED TO GROUND |
| BODY CONTROL MODULE |
