B213F-Ignition Start (Remote Start) Control Circuit Low: Wiring Diagram

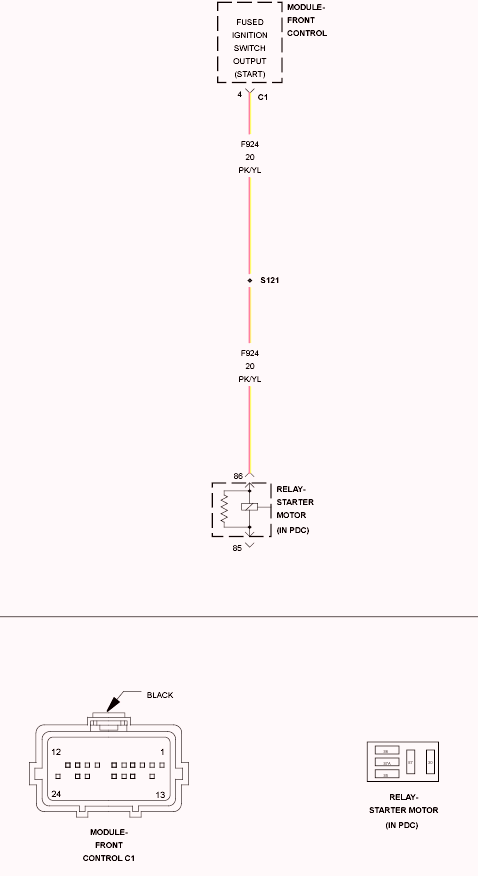

Fig 1: Ignition Start (Remote Start) Control Circuit
GC0106209Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
