Circuit Schematic

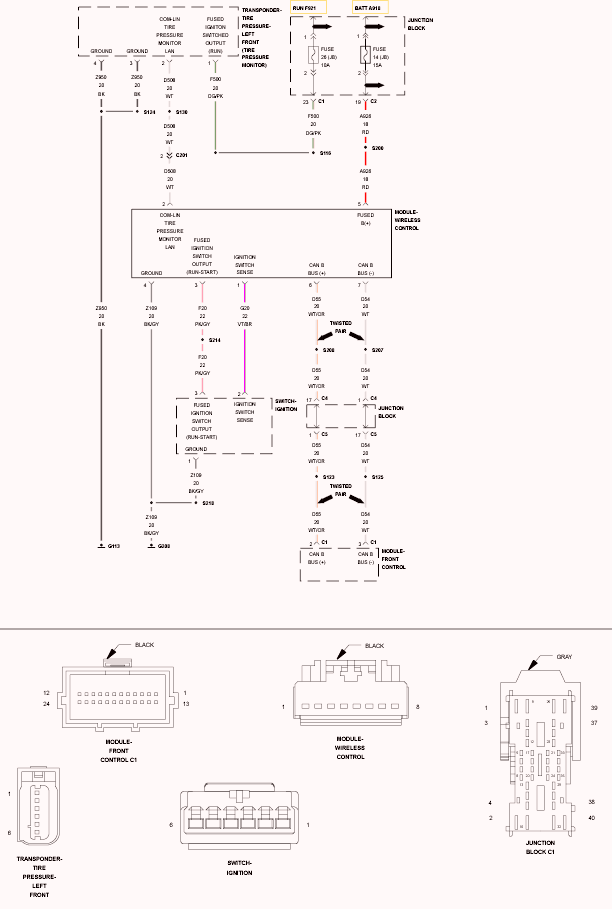

Fig 1: Left Front Tire Pressure Trigger Module Schematic
GC0106990Courtesy of CHRYSLER LLC
