Circuit Schematic

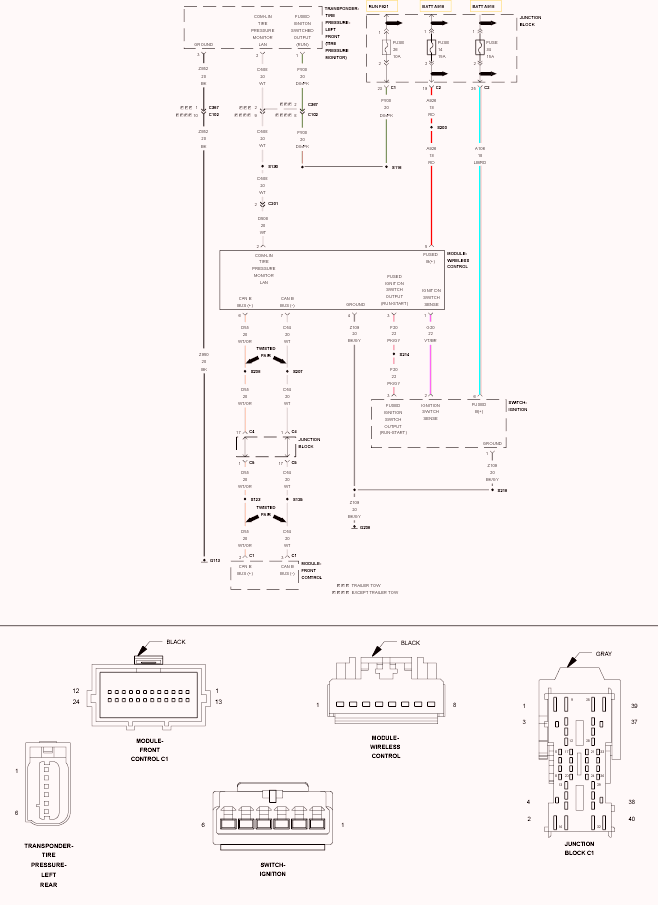

Fig 1: Left Rear Tire Pressure Trigger Module Schematic
GC0107002Courtesy of CHRYSLER LLC
