Transmission Speed Sensor, A/T
>>
Output Speed Sensor (Engine) 2 Way
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

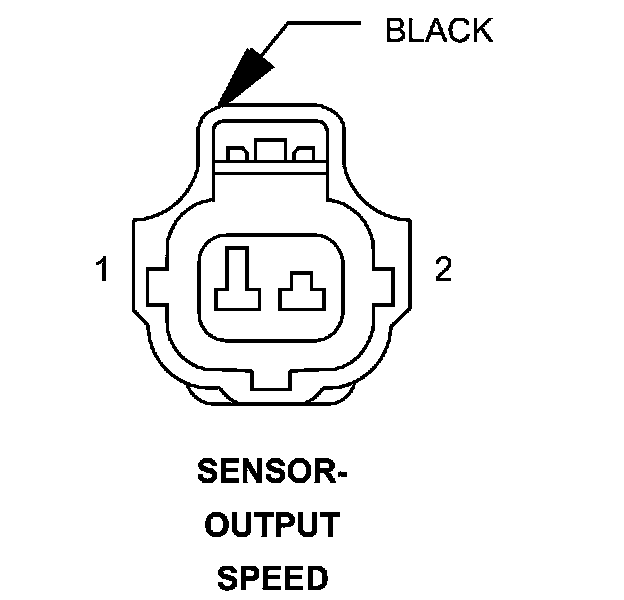

Output Speed Sensor (Engine) 2 Way

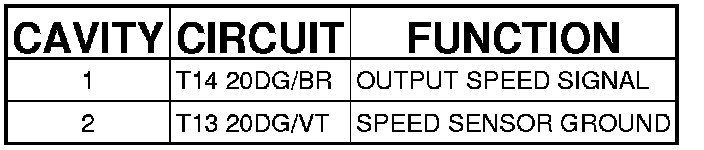

Connector - (ENGINE) 2 WAY
SENSOR-OUTPUT SPEED - (ENGINE) 2 WAY
