Left Speed Control Switch (Steering Wheel) 3 Way

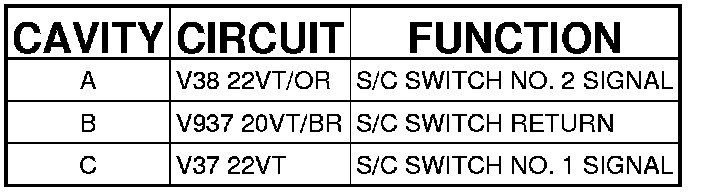

Connector - (STEERING WHEEL) 3 WAY

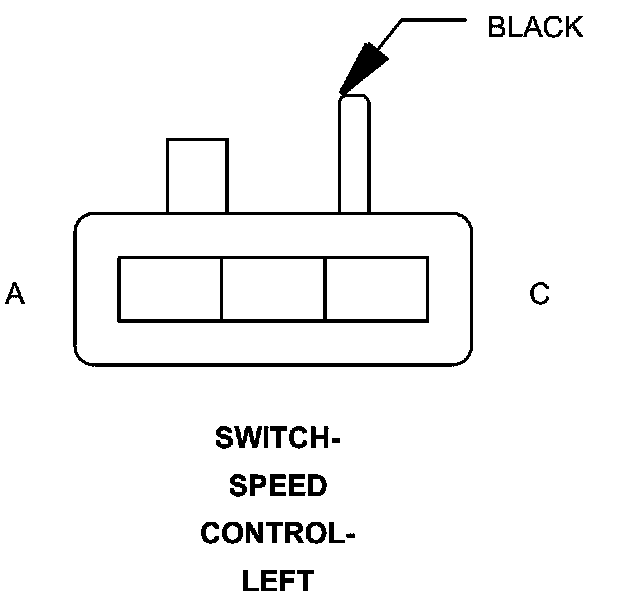

SWITCH-SPEED CONTROL-LEFT - (STEERING WHEEL) 3 WAY
