Auxiliary Power Outlet Switch

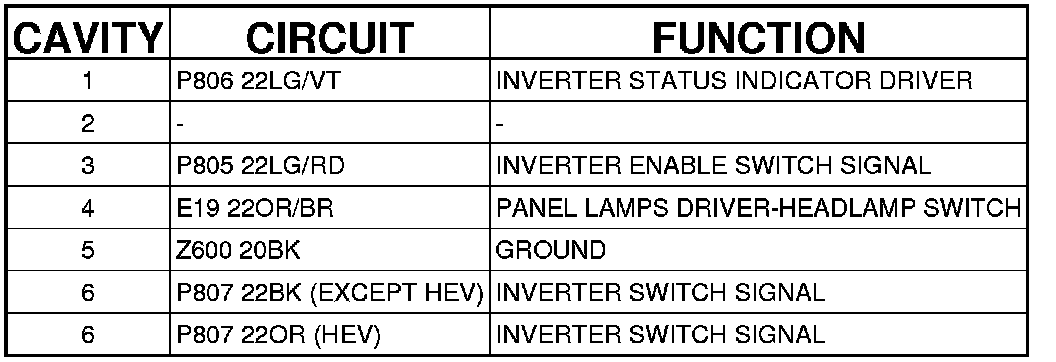

Connector - (INSTRUMENT PANEL) 6 WAY

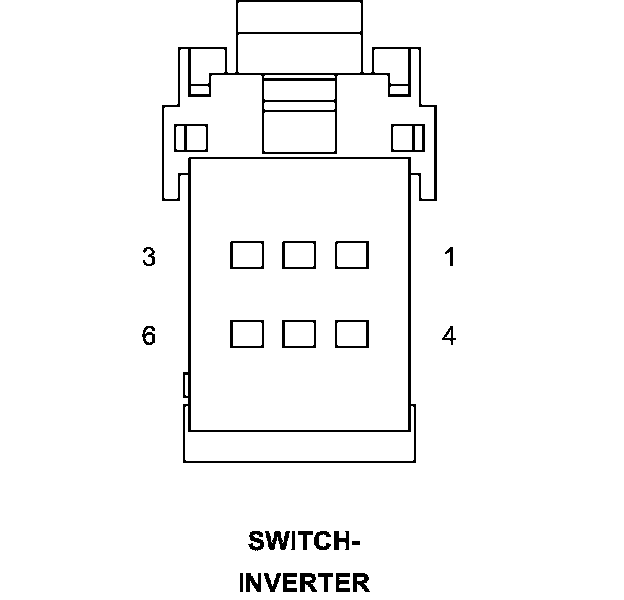

SWITCH-INVERTER - (INSTRUMENT PANEL) 6 WAY
