Installation

3.7L

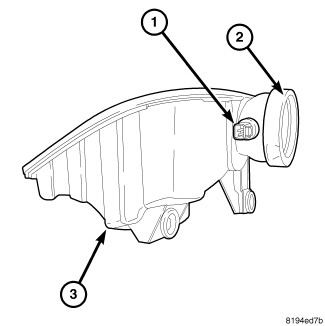

1. Check condition of sensor O-ring (2).





2. Clean sensor mounting hole in air intake resonator (3).
3. Position sensor (1) into air intake resonator and rotate clockwise until past release tab.
4. Install air intake resonator (3) to throttle body.
5. Install electrical connector to sensor (1).
