Power Distribution Module
>>
Power Distribution Center C3 (Hard Wired) 41 Way
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

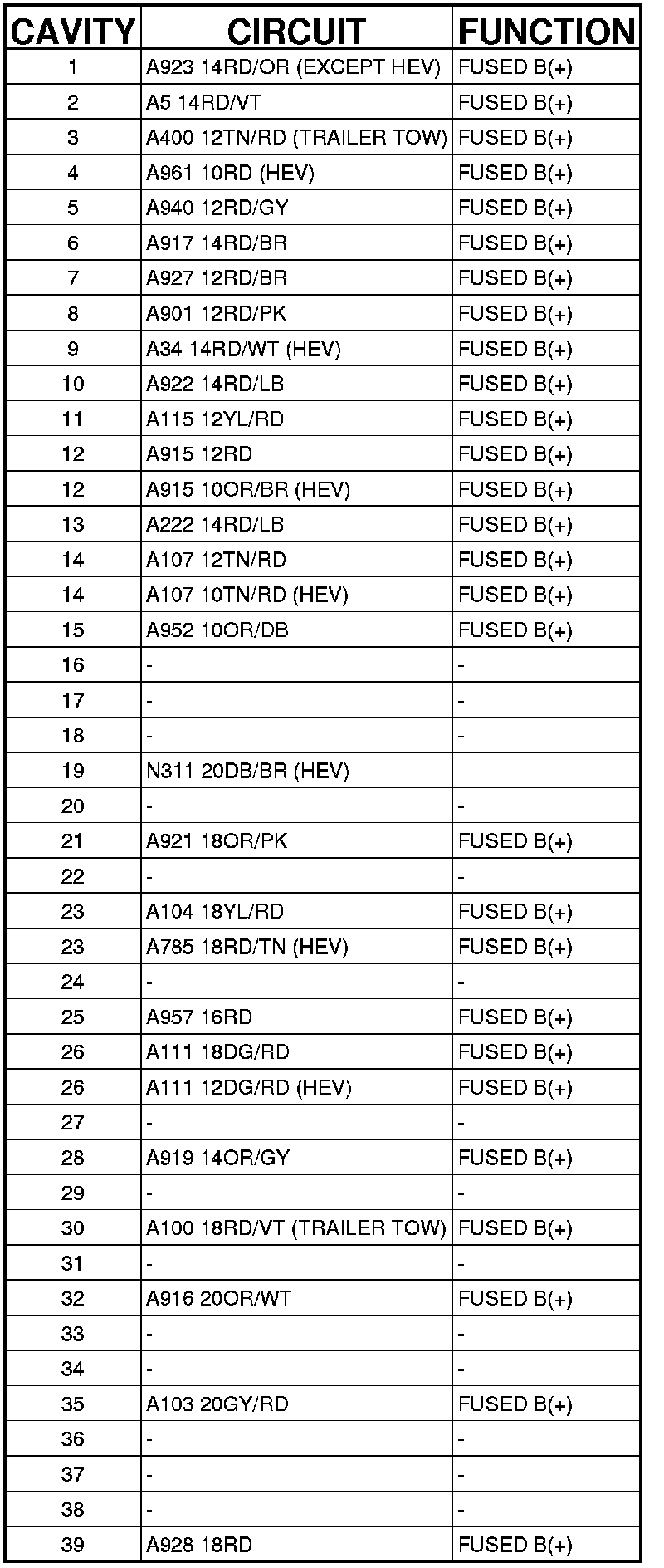

Power Distribution Center C3 (Hard Wired) 41 Way
Connector C3 - (HARD WIRED) 41 WAY
POWER DISTRIBUTION CENTER - (HARD WIRED) 41 WAY
