P0325-Knock Sensor 1 Circuit: Notes

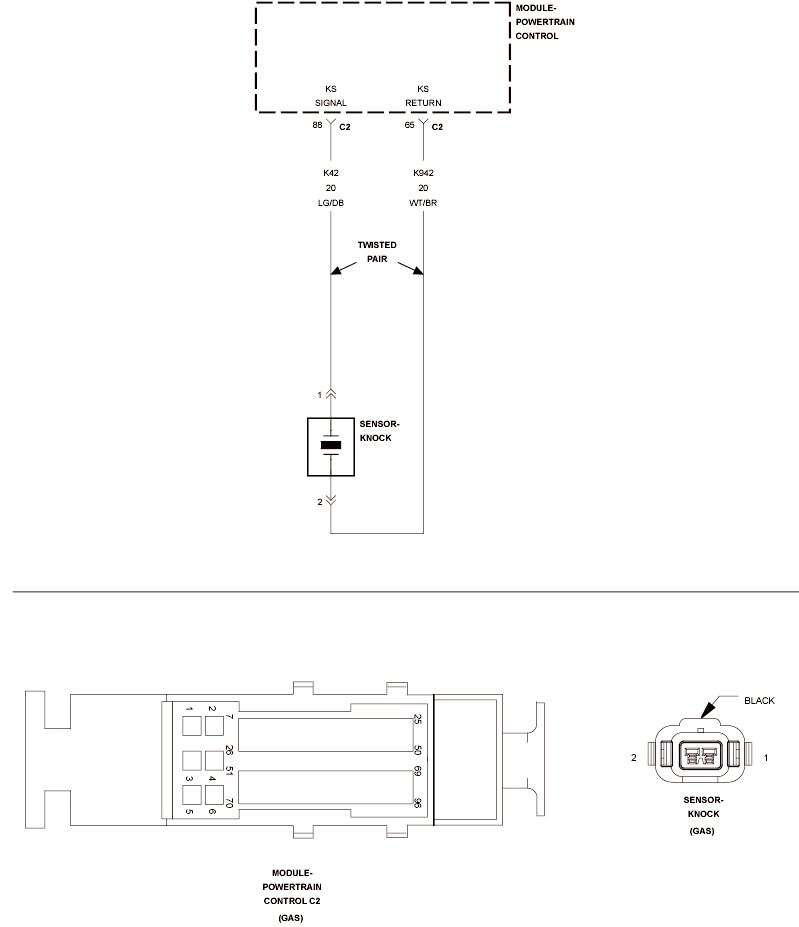

Fig 1: Knock Sensor Circuit

GC0099839

Courtesy of CHRYSLER LLC
