*Checking The Engine Coolant Temperature Sensor: Notes

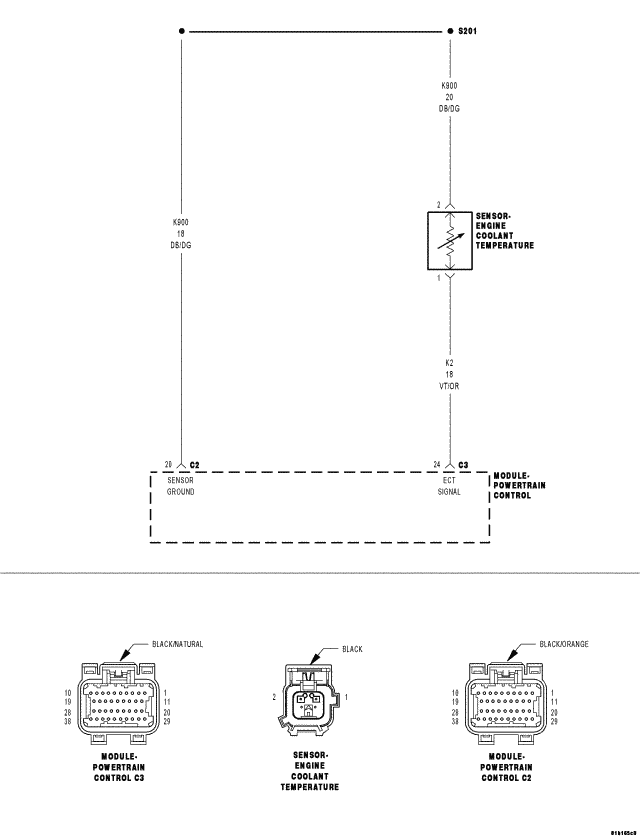

Fig 1: Engine Coolant Temperature Sensor Circuit Schematic
GC0076311Courtesy of CHRYSLER LLC
