Clutch Switch: Diagrams




Component ID: 590

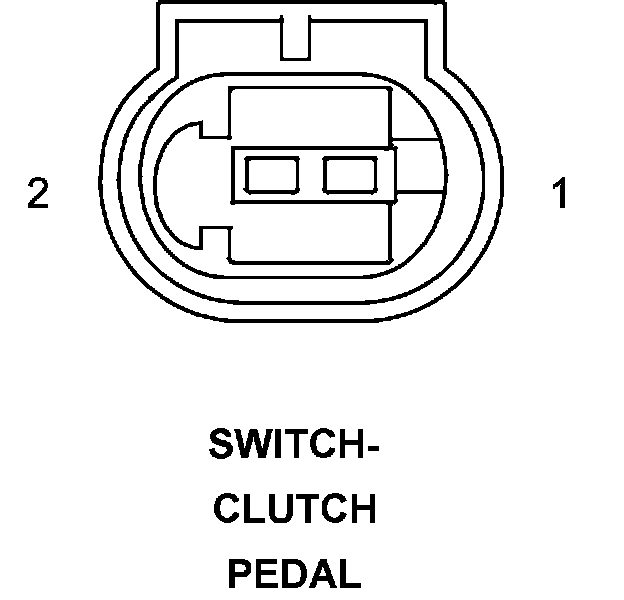

Component : SWITCH-CLUTCH PEDAL

Connector:
Name : SWITCH-CLUTCH PEDAL
Color :
# of pins : 2




Pin Circuit Description
1 61 20BR GROUND
