Evaporator Temperature Sensor / Switch

Component ID: 377
Component : SENSOR-EVAPORATOR TEMPERATURE

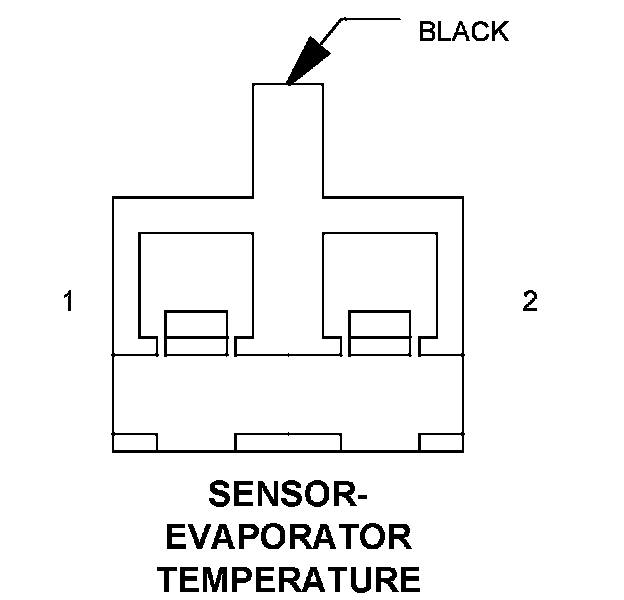

Connector:
Name : SENSOR-EVAPORATOR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND

Component Location - 27
