Removal







REMOVAL





1. Disconnect and isolate the battery negative cable.

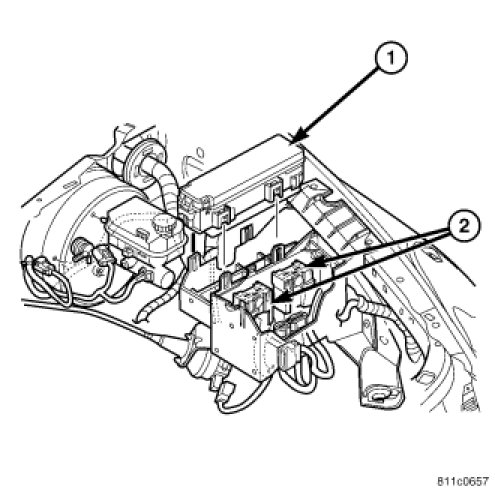

2. Depress retaining tabs on the side on the PDC (1).
3. Disconnect electrical harness connectors (2) and remove PDC.
