Circuit Schematic

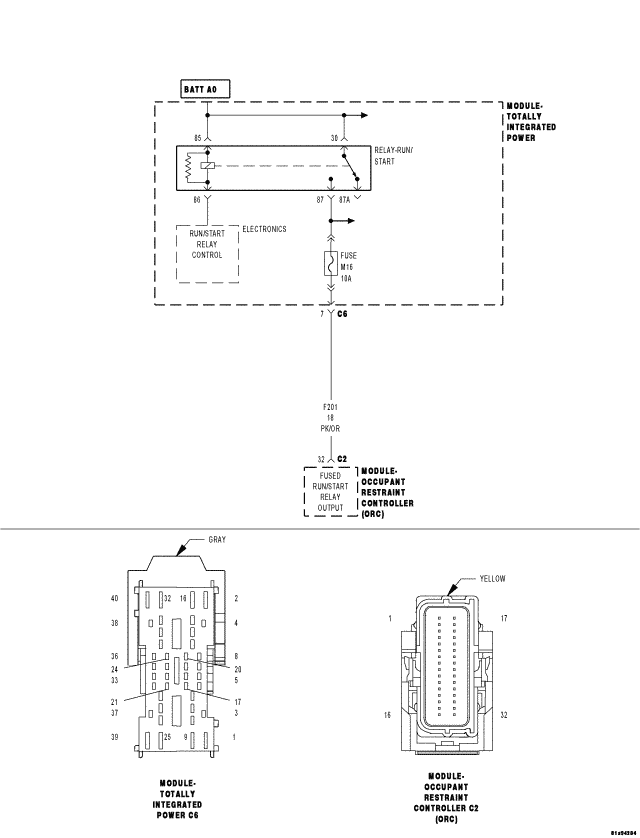

Fig 1: Fused Run Start Relay Output Circuit Schematic
GC0061859Courtesy of CHRYSLER LLC
