Installation

INSTALLATION

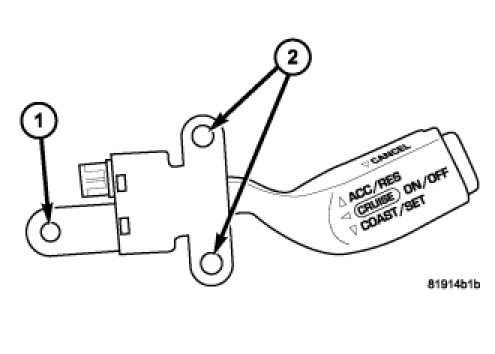

Mounting hole (1) uses a screw. Depending on model line, mounting holes (2) may use either two screws, or one screw and a locating pin.





1. Connect electrical connector to speed control switch.

2. Install speed control switch mounting screws.

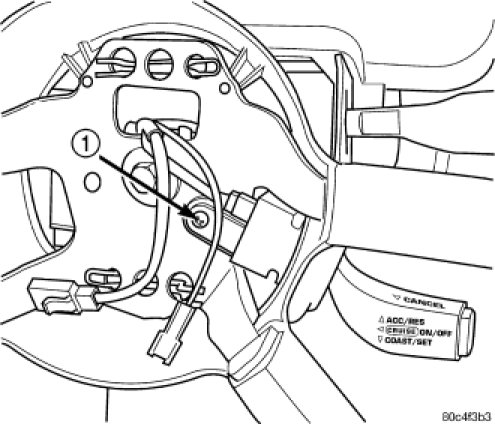

3. Tighten screws (1) to 1.6 Nm (15 in. lbs.). Make sure rubber seal is in place around switch.





4. Install horn switch.

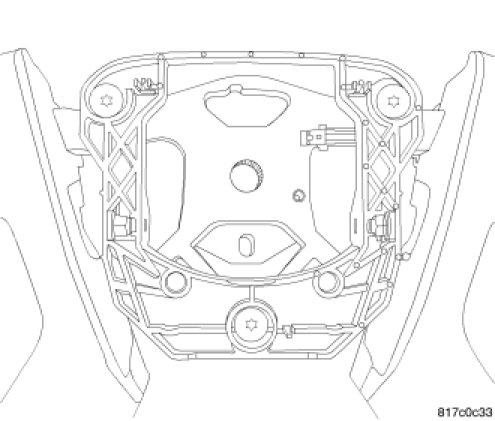

5. Install three mounting fasteners.

6. Connect electrical connector to clockspring.

7. Install driver airbag.

WARNING: Do not connect battery negative cable yet.

8. Reconnect battery using Airbag System Test procedure in Restraints.

9. Close hood.

10. Verify vehicle and system operation.
