Durango 3.7 K
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0335 To P0506
>>
P0461-Fuel Level Sensor 1 Performance
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

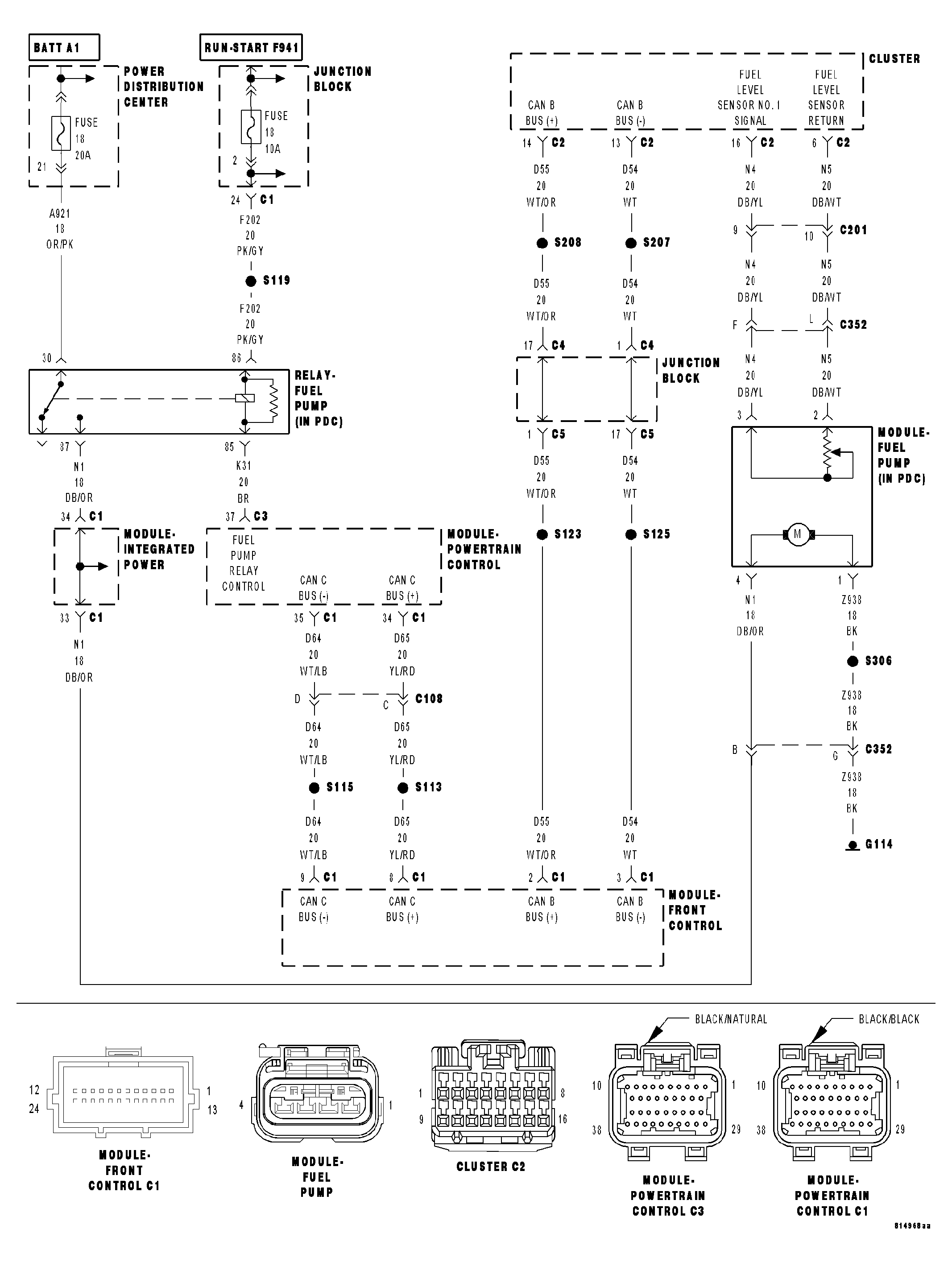

Fig 1: Fuel Pump Module & Fuel Pump Relay Circuit Schematic
Courtesy of CHRYSLER LLC
