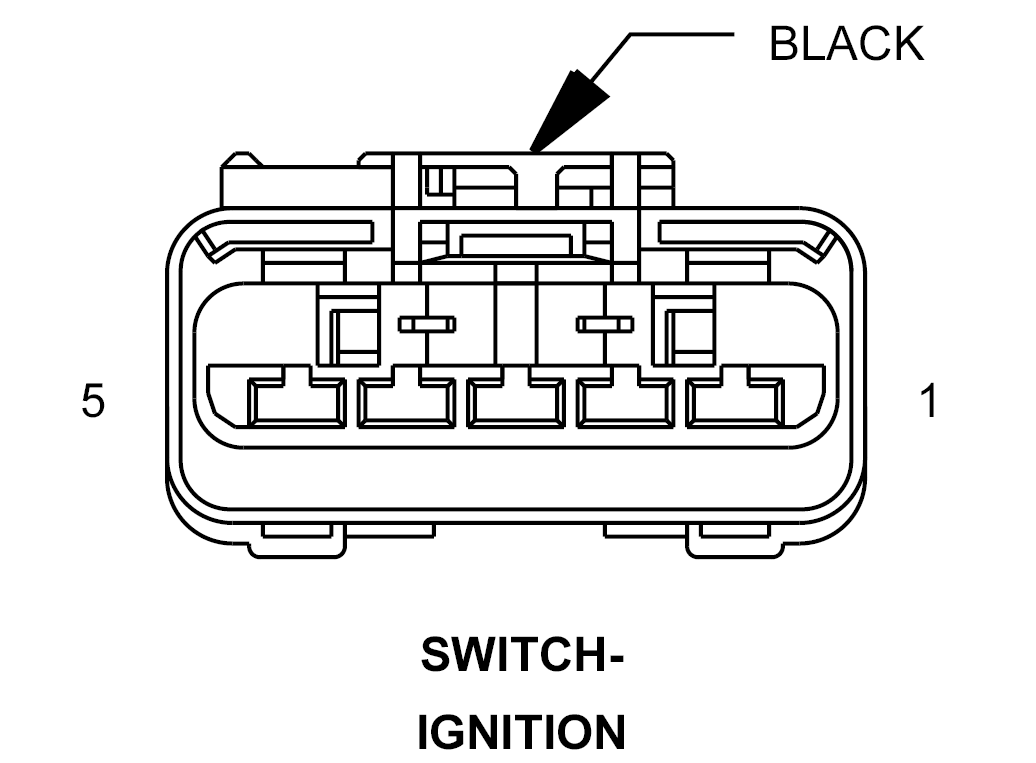

Ignition Switch Connector End View
SWITCH-IGNITION - BLACK 5-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z937 20BK/YL |
GROUND |
| 2 |
G20 20VT/BR |
IGNITION SWITCH SENSE |
| 3 |
F20 20PK/WT |
IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
F961 20PK/LB |
IGNITION SWITCH OUTPUT (START) |
| 5 |
A952 20RD/OR |
FUSED B(+) |
