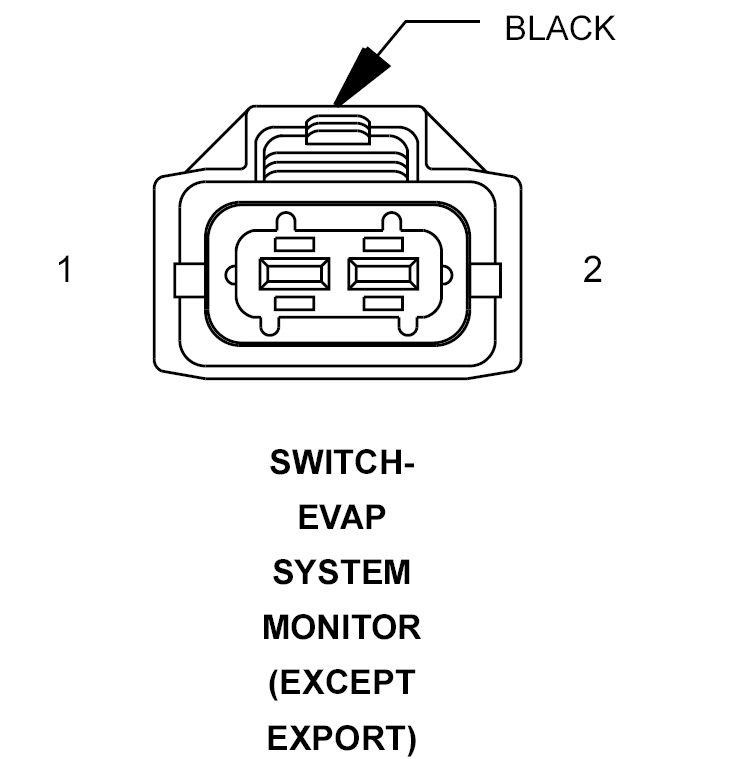

EVAP System Monitor Switch (Except Export) Connector End View
SWITCH-EVAP SYSTEM MONITOR - BLACK 2-WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z965 20BK |
GROUND (AWD) |
| 1 |
Z965 20BK/GY |
GROUND (FWD) |
| 2 |
K107 18VT/LB |
ESM SIGNAL (AWD) |
| 2 |
K107 20VT/LB |
ESM SIGNAL (FWD) |
