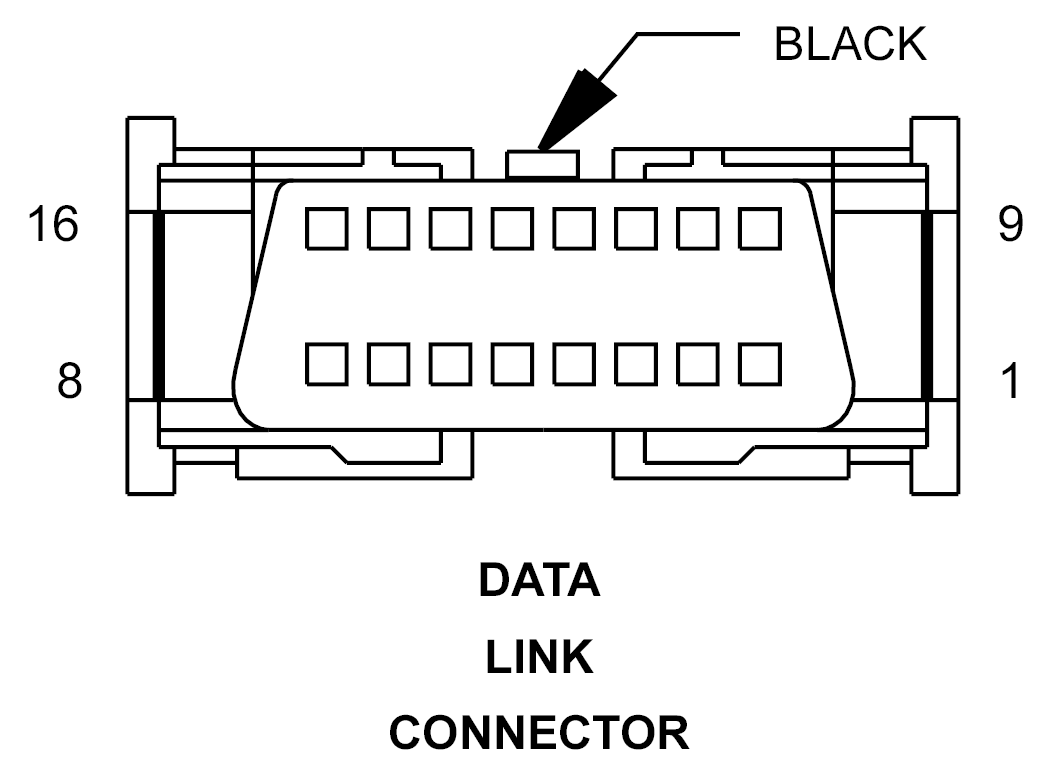

Data Link Connector, Connector End View
DATA LINK CONNECTOR - BLACK 16-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
Z11 20BK/BR |
GROUND |
| 5 |
Z11 20BK/BR |
GROUND |
| 6 |
D72 20WT/TN |
DIAGNOSTIC CAN C (+) |
| 7 |
D21 20WT/BR |
SCI TRANSMIT (DIESEL) |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
- |
- |
| 13 |
- |
- |
| 14 |
D71 20WT/DB |
DIAGNOSTIC CAN C (-) |
| 15 |
- |
- |
| 16 |
A933 20RD/LG |
FUSED B(+) |
