System Specifications






SPECIFICATIONS

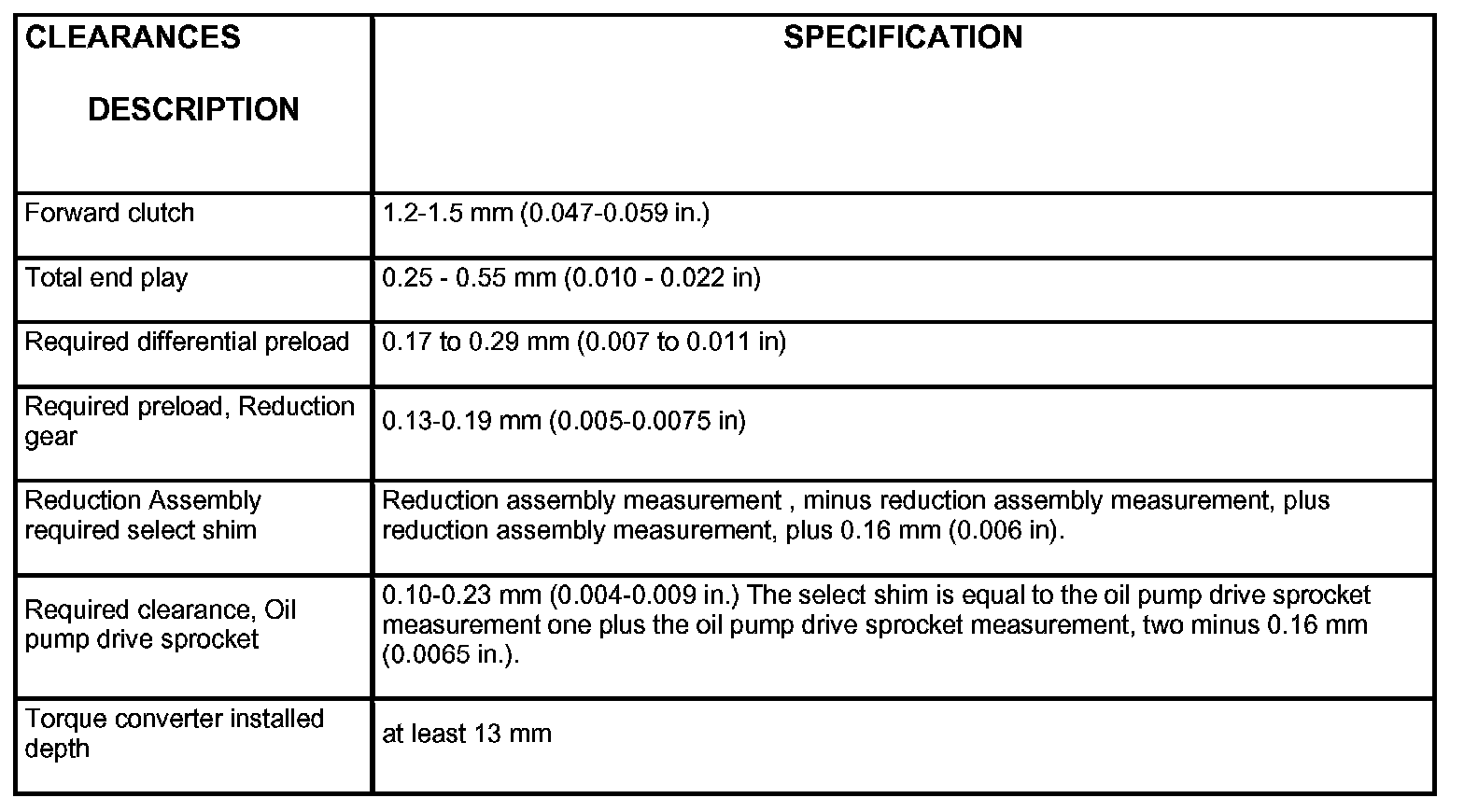

Clearance Specifications:

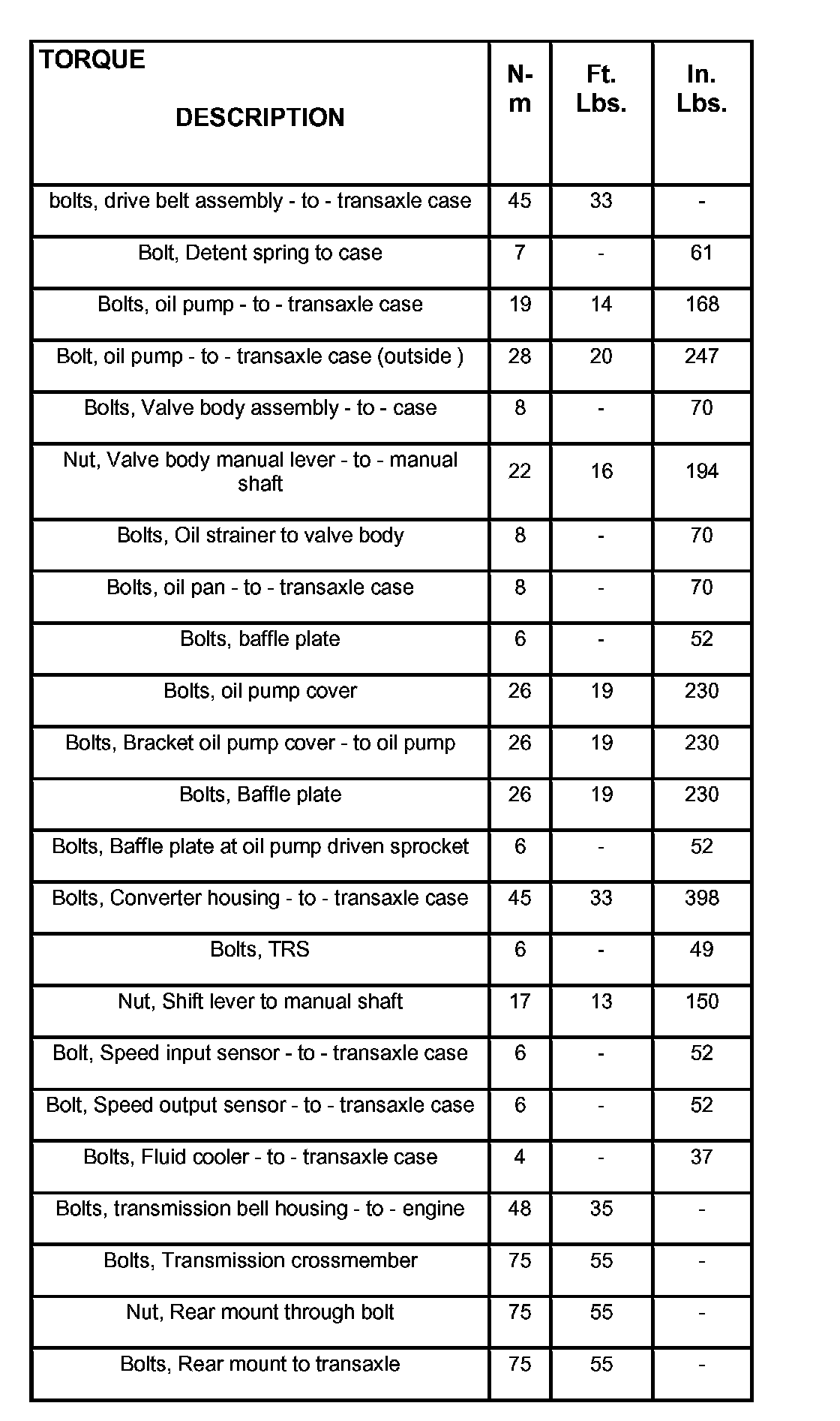

Torque Specifications (Part 1):




Torque Specifications (Part 2):






Flex Plate
Driveplate-to-Crankshaft Bolts 95 Nm (70 ft. lbs.)
Oil Pan Mounting Bolts 8 Nm (70 in. lbs.)
