Installation






INSTALLATION

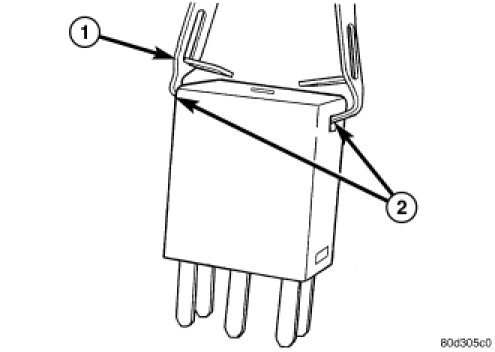

1. Align relay (2) with Totally Integrated Power Module (TIPM) and press into position.

2. Install cover to TIPM.

3. Connect battery negative cable.
