Sensor-Wheel Speed-ABS-Right Rear

Component ID: 322
Component : SENSOR-WHEEL SPEED-ABS-RIGHT REAR

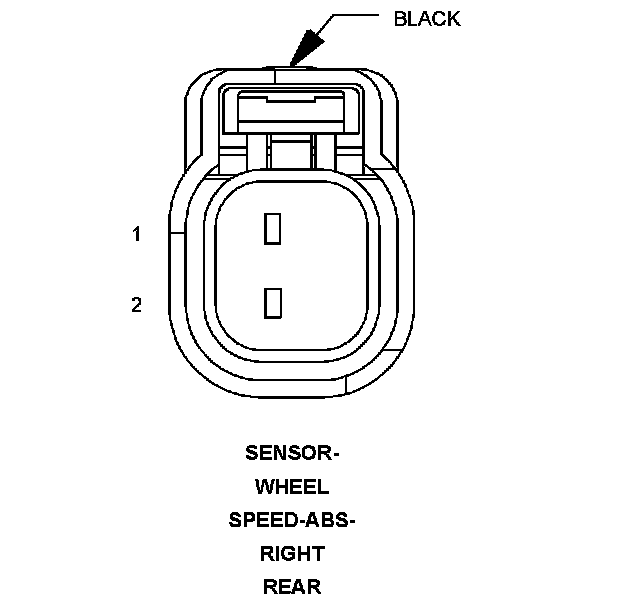

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT REAR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B2 20DG/LB
2 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 20DG/OR
2 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 20YL/DB

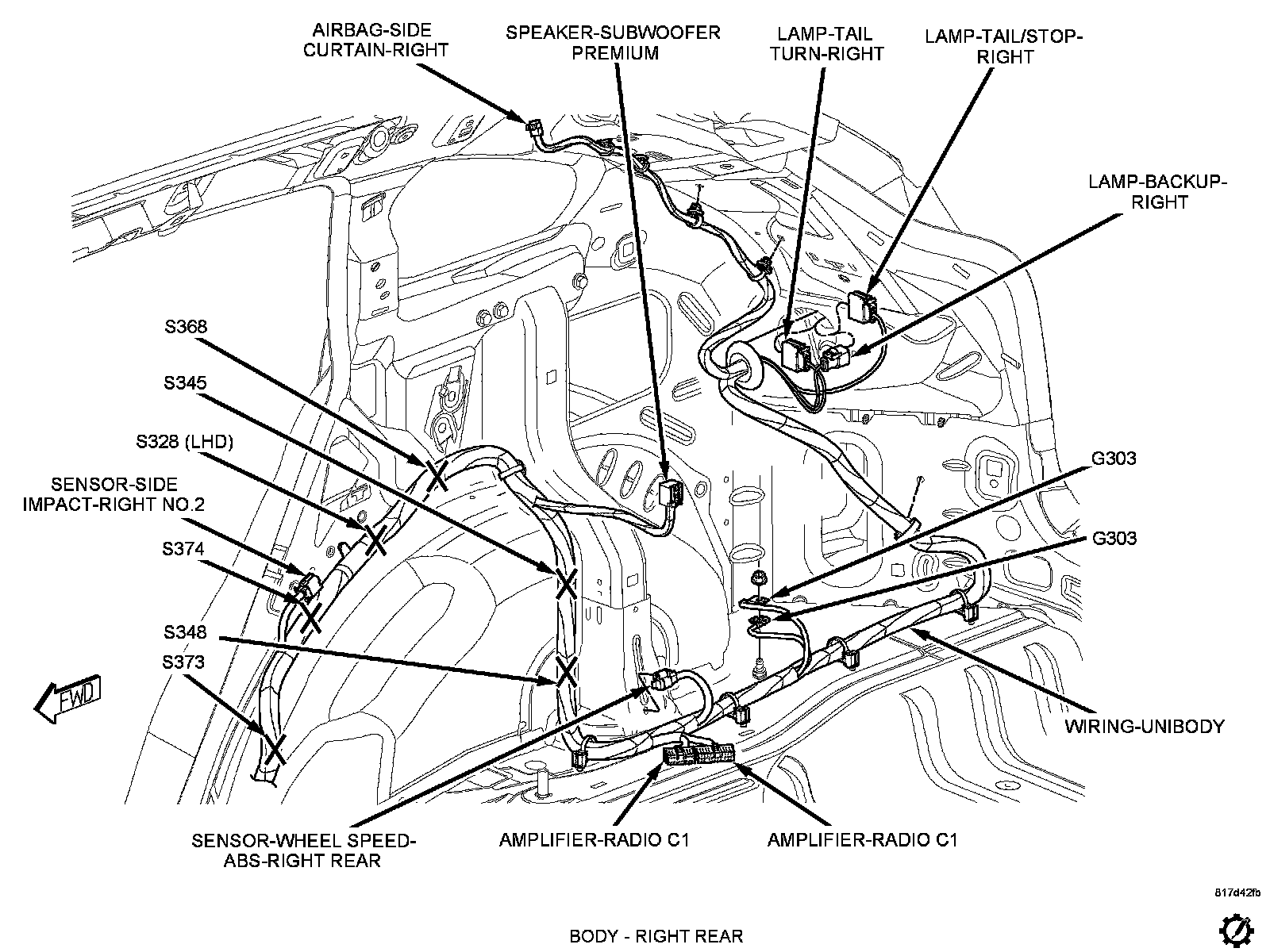

Component Location - 63






Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT REAR
Color :
# of pins : 2

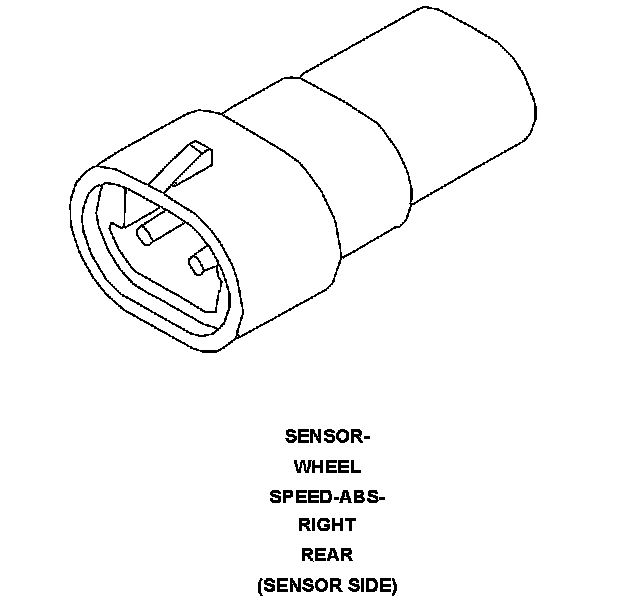

Qualifier : (SENSOR SIDE)




Pin Description Circuit
1 RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY DG/LB
2 RIGHT REAR WHEEL SPEED SENSOR SIGNAL DG/OR

Component Location - 63
