Dodge and Ram
>>
2006
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Figure 2

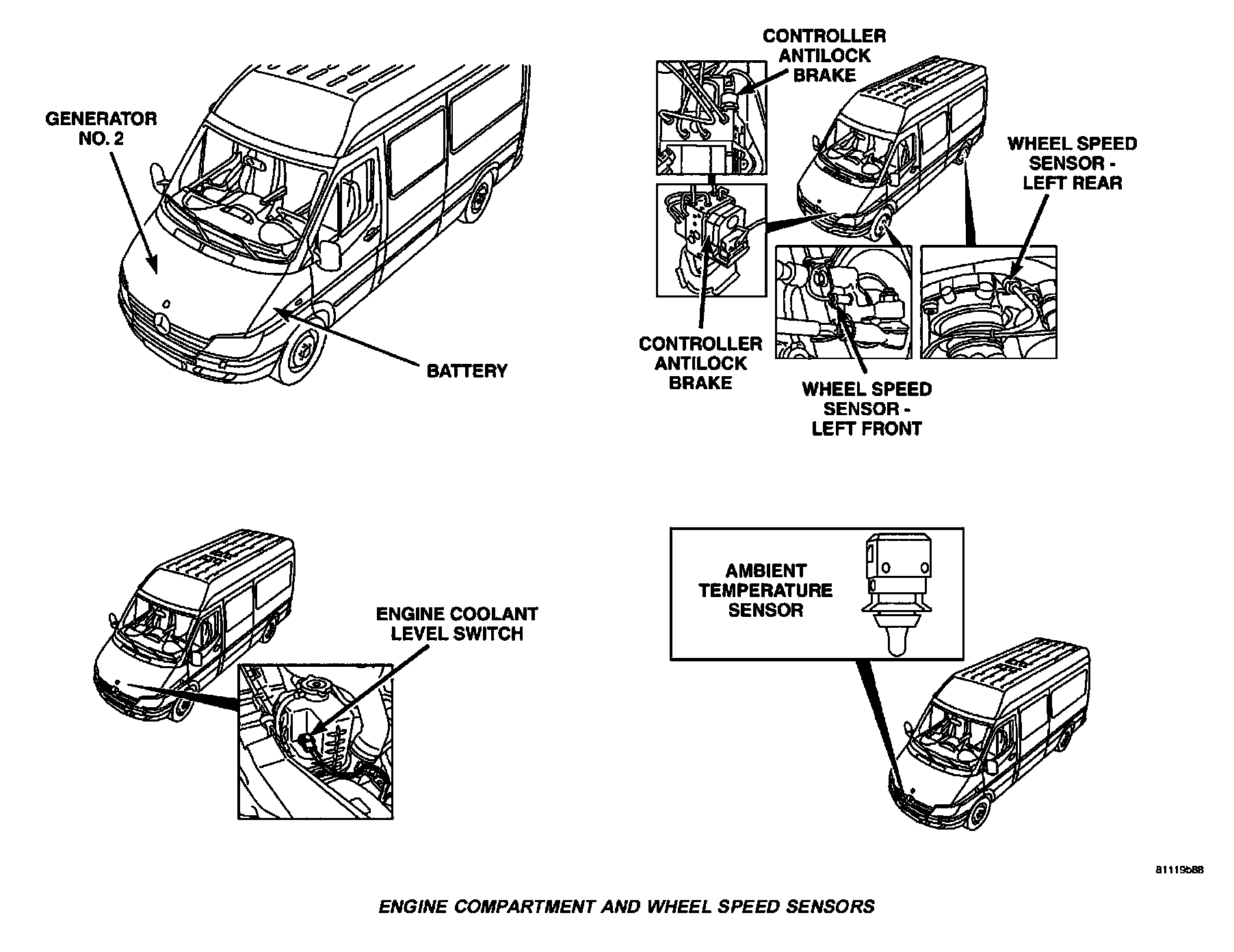

Engine Compartment And Wheel Speed Sensors:

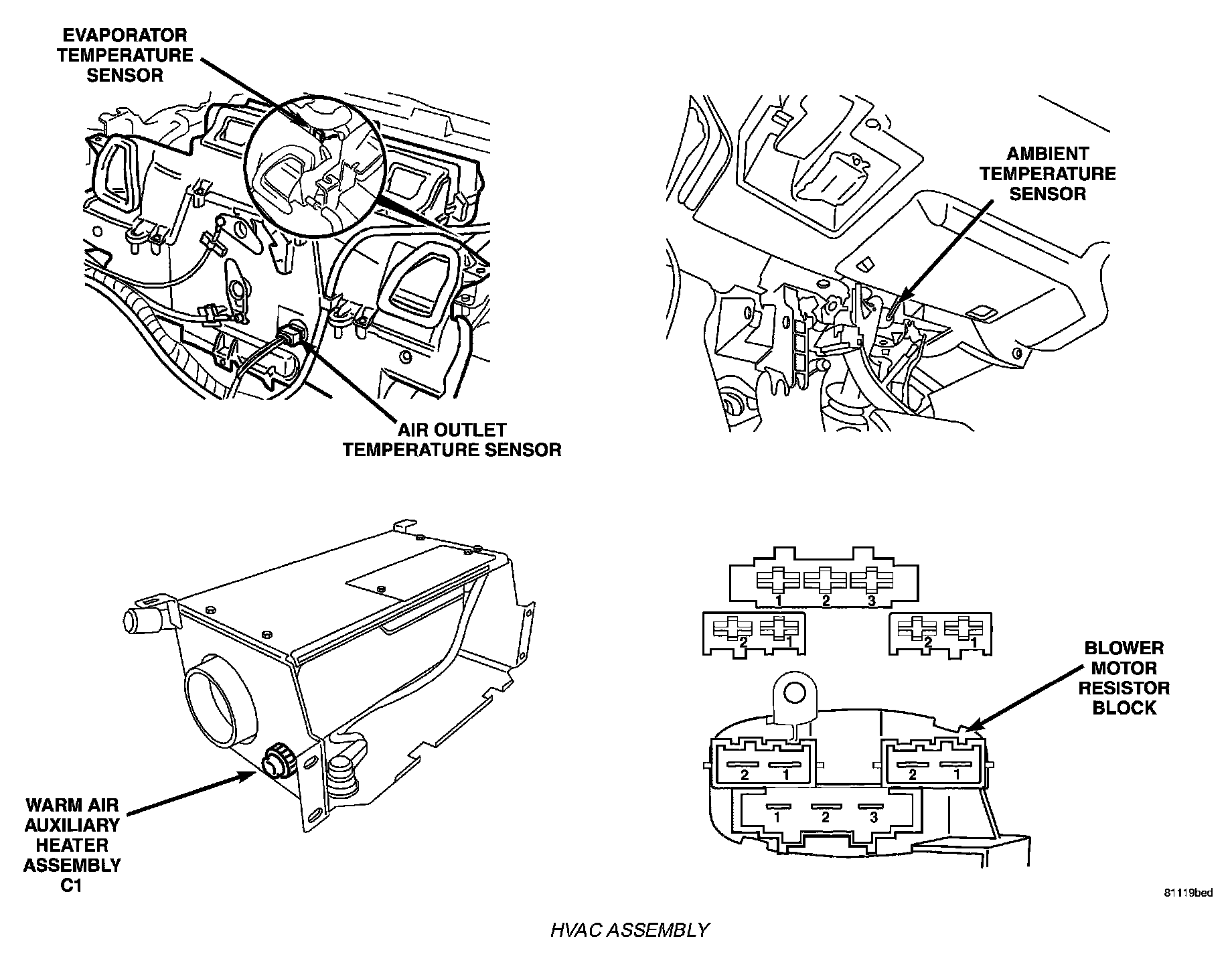

HVAC Assembly:
