EVAP Leak Detection Test Graph

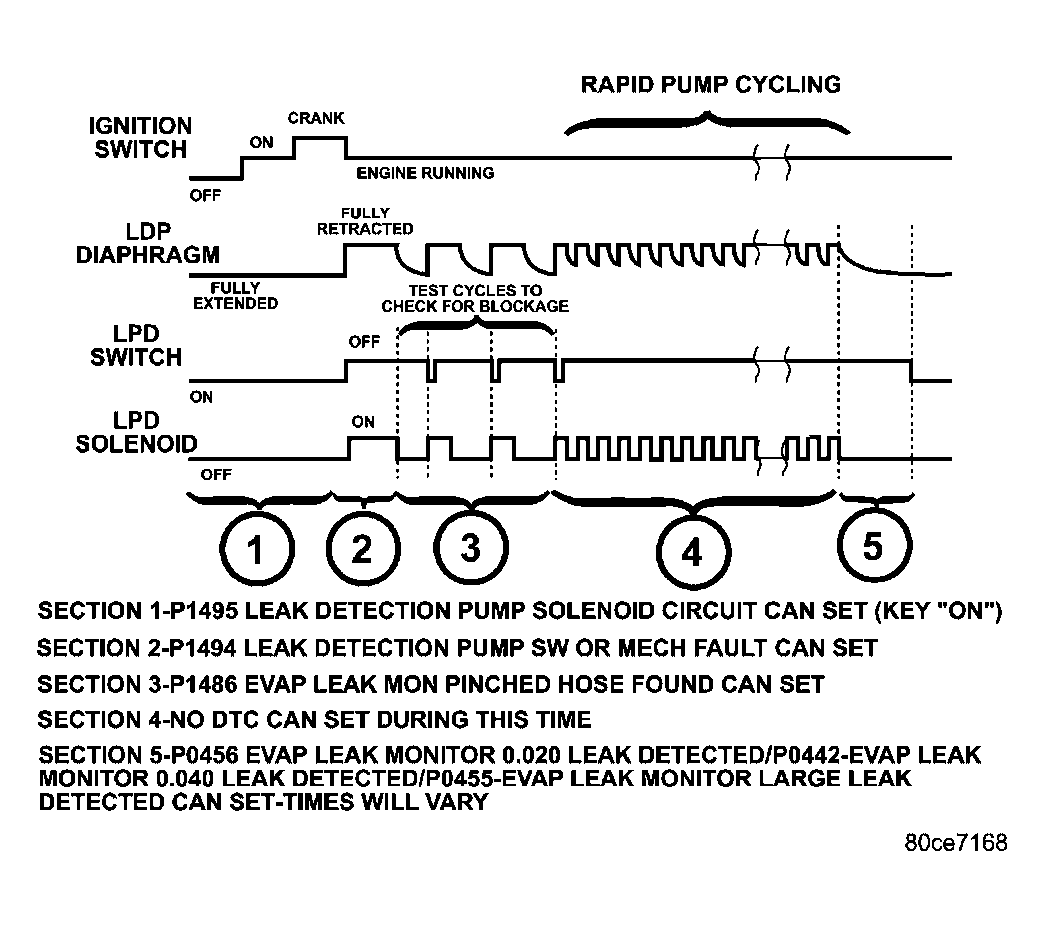

Fig 1: EVAP Leak Detection Test Graph

G04550314

Courtesy of DAIMLERCHRYSLER CORP.
