Dodge and Ram
>>
2005
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 20
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Figure 20

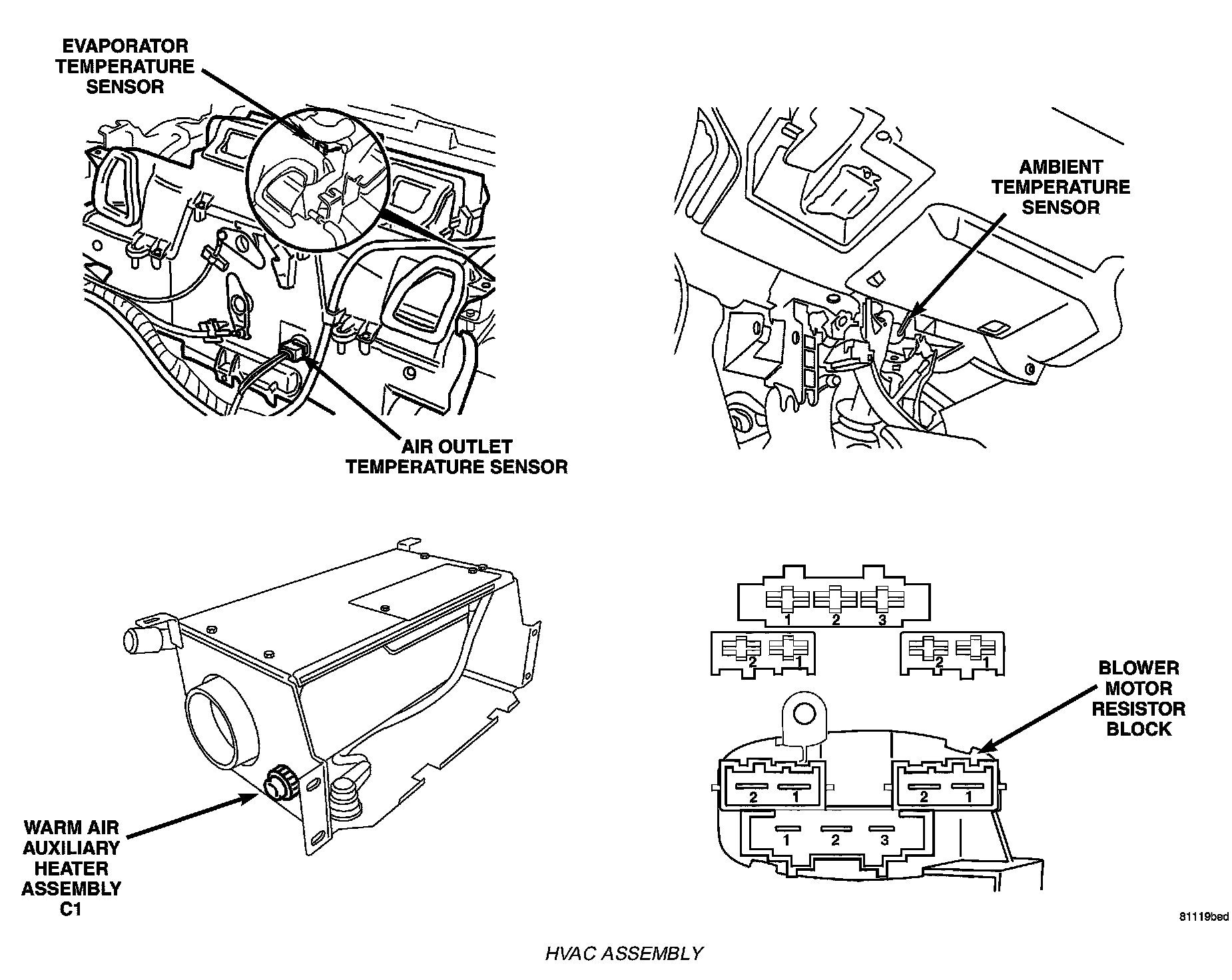

HVAC Assembly:

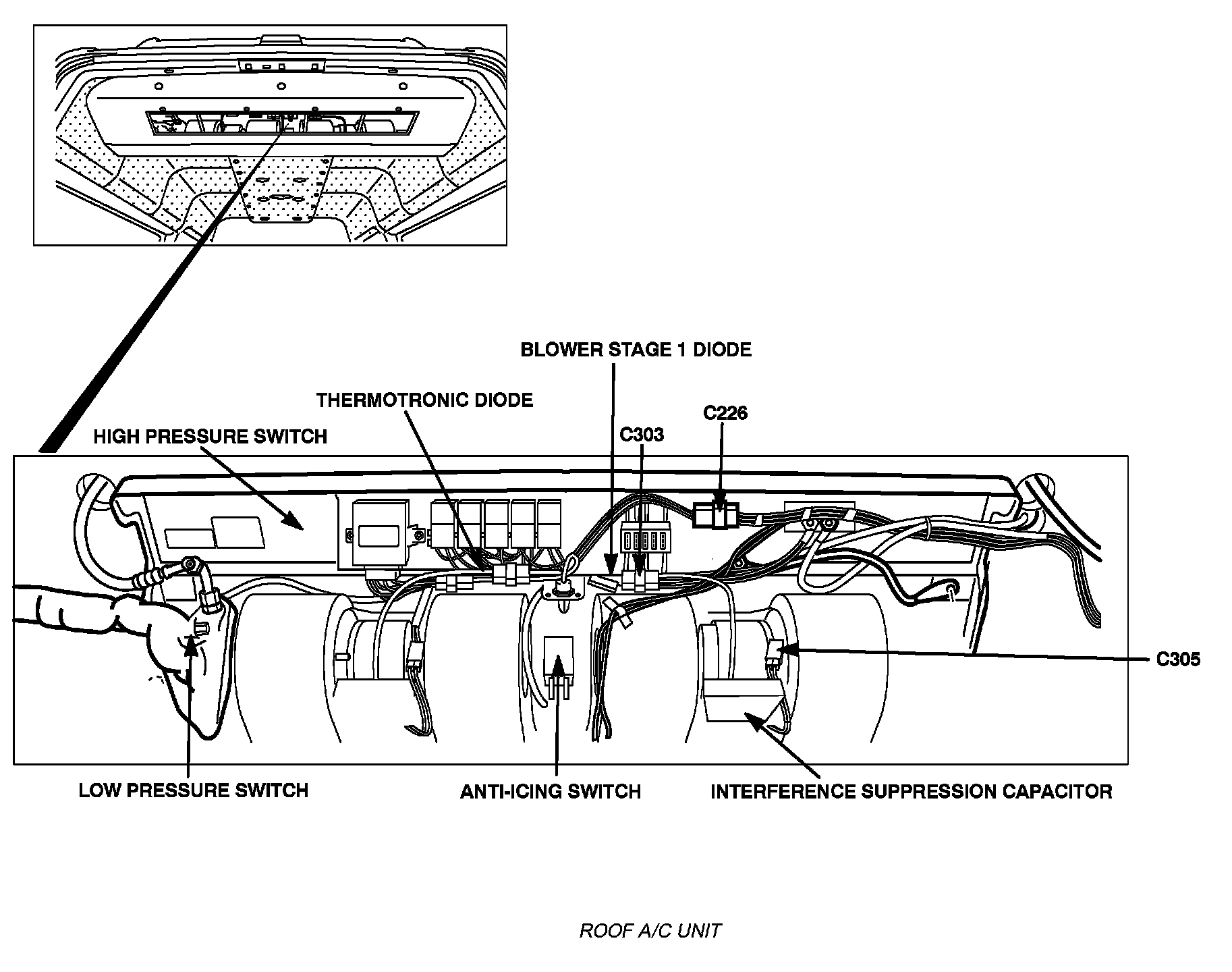

Roof A/C Unit:
