SRT-2.4L Engine

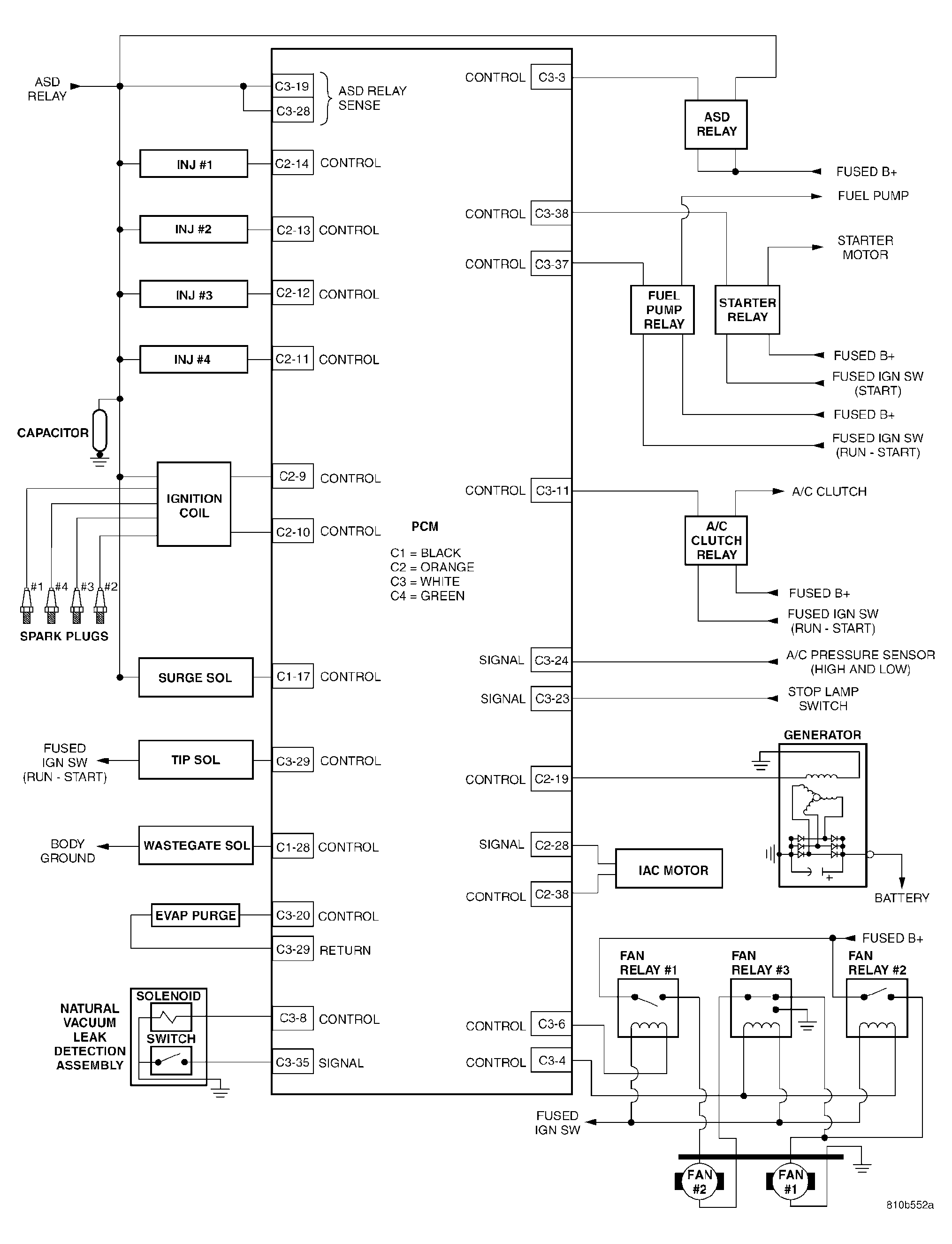

Fig 1: Schematic Diagrams - SRT-2.4L Engine

G04549759

Courtesy of DAIMLERCHRYSLER CORP.
