Body & Frame: Windows: Interior/Exterior: DECKLID/Hatch/Liftgate/Tailgate: Latch: Installation

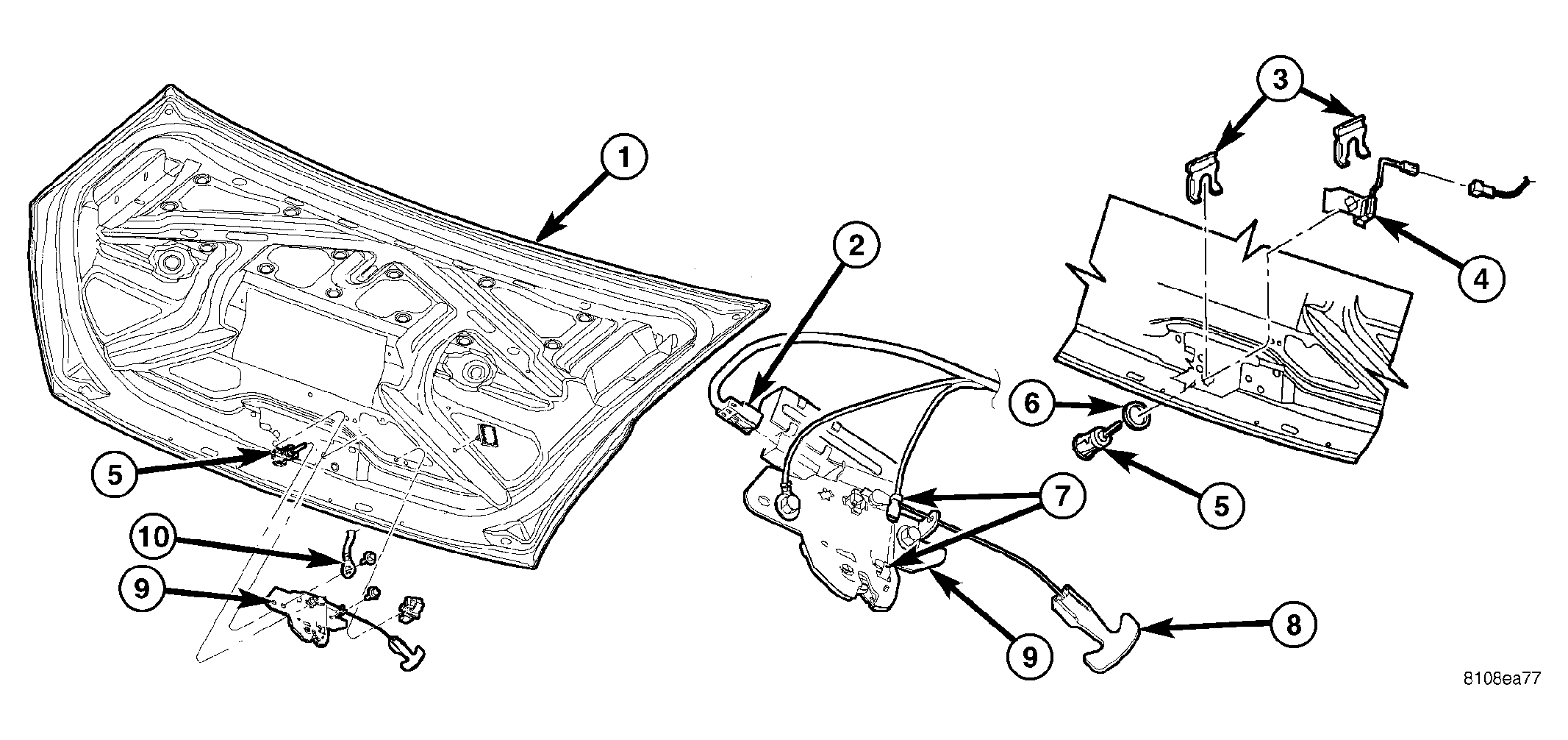

  1. Place decklid latch into position. See Figure.
  2. Connect remote decklid latch wire connector to decklid latch.
  3. Connect decklid ajar and lamp switch connector to latch.
  4. Install bolts attaching decklid latch to decklid lid.
  5. Check decklid latch for proper alignment.
  6. Close decklid.
