Child Restraint Anchor: Description

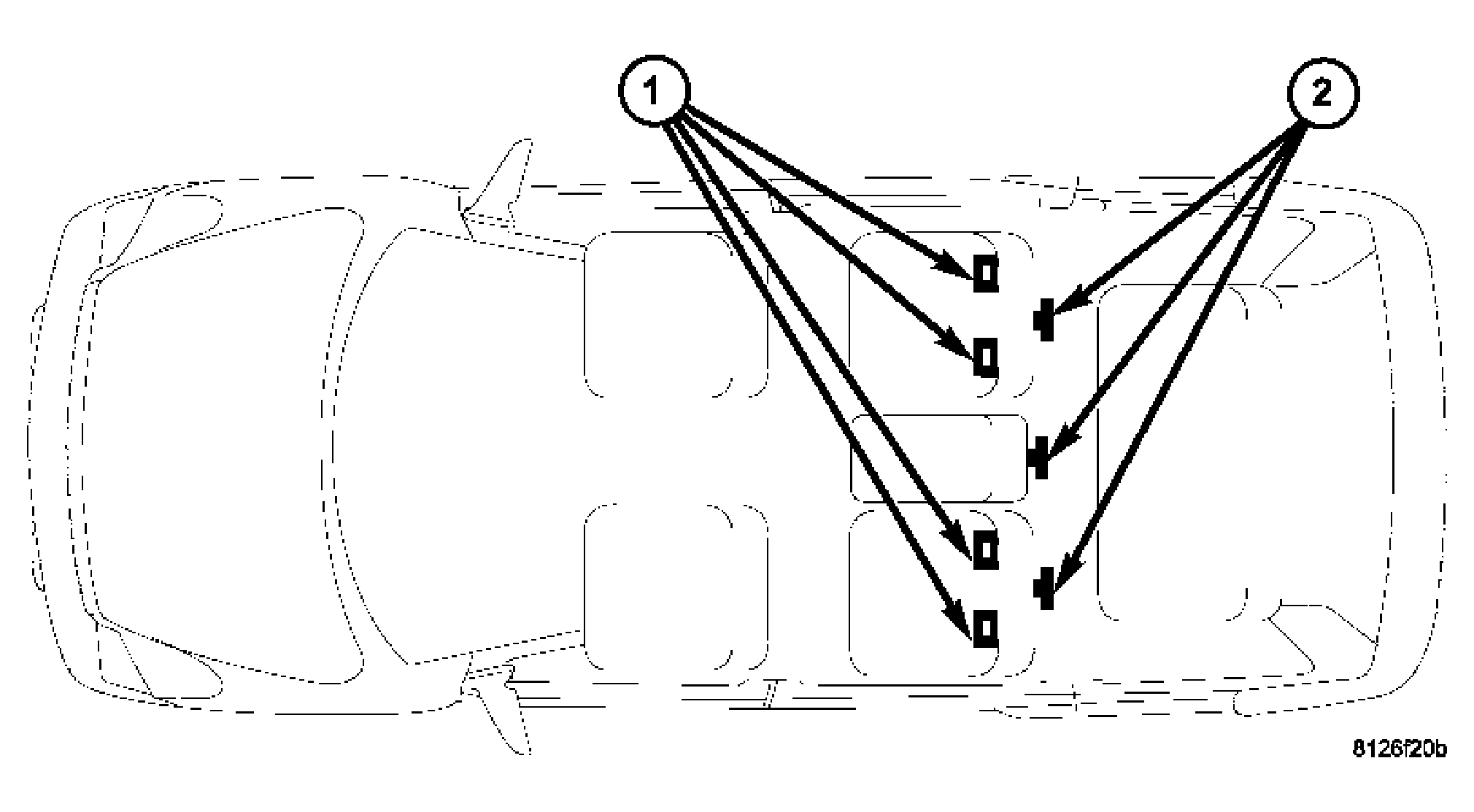

This model is equipped with a Lower Anchors and Tether for Children, or LATCH child restraint anchorage system. The LATCH system provides for the installation of suitable child restraints in certain seating positions without using the standard equipment seat belt provided for that seating position. The second row seats in this model are equipped with a fixed-position child restraint upper tether anchor (2) for both the center and the two outboard seating positions, and child restraint lower anchors (1) for the two outboard seating positions only.
The three upper tether anchors (3) are integral to the second row seat cushion frames. One anchor is integral to the cushion frame of the center seat section (2), and one is integral to cushion frames of each outboard seat section (1). These anchors are each constructed from a heavy-gauge steel wire loop that is chrome plated and securely welded to the seat cushion frame. The child restraint upper tether anchors cannot be adjusted or repaired and, if faulty or damaged, they must be replaced as a unit with their respective second row seat cushion frame unit.
The lower anchors (2) for this model are also integral to their respective second row outboard seat cushion frame. These anchors are also constructed from a heavy-gauge steel wire loop that is chrome plated and securely welded to the seat cushion frame. They are each accessed from the front of their respective seats, at each side where the seat back (1) meets the seat cushion (3). These lower anchors cannot be adjusted or repaired and, if faulty or damaged, they must be replaced as a unit with the second row seat cushion frame unit.
