Left Sliding Door Does Not Trip VTSS

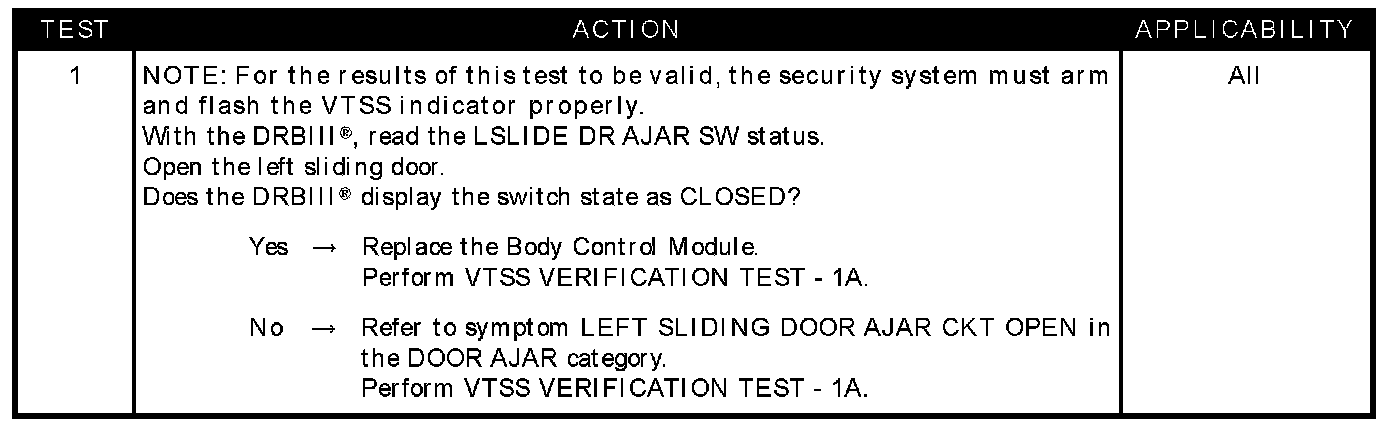

Test 1:






SYMPTOM
LEFT SLIDING DOOR DOES NOT TRIP VTSS

POSSIBLE CAUSES
- Monitor DRBIII(R) for left sliding door ajar status
- Body control module
