A/C Compressor Mounting Bracket

REMOVAL
1. Remove the A/C compressor from the mounting bracket

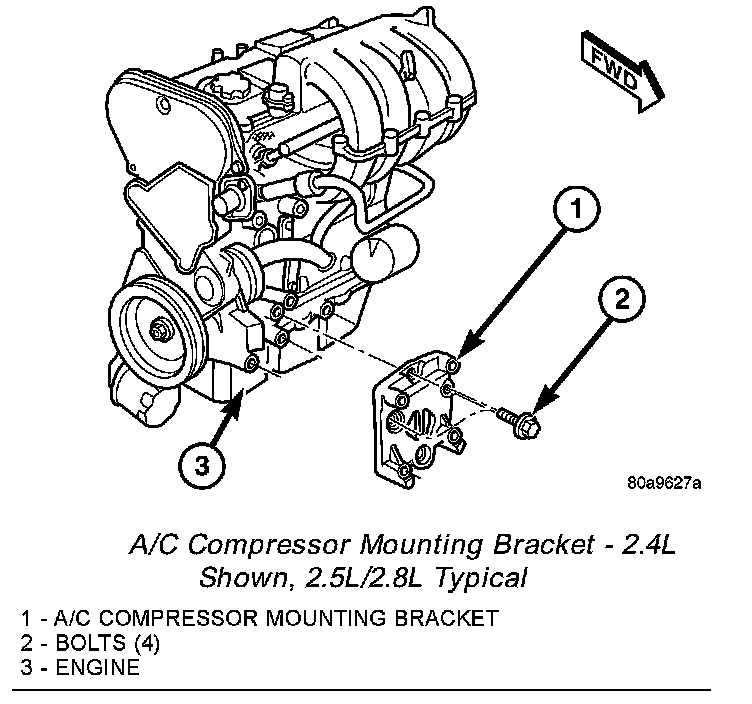

A/C Compressor Mounting Bracket - 2.4L Shown, 2.5L/2.8L Typical:

2. Remove the bolts that secure the A/C compressor mounting bracket to the engine and remove the bracket.

INSTALLATION
1. Position the A/C compressor mounting bracket onto the engine.
2. Install the bolts that secure the A/C compressor mounting bracket to the engine. Tighten the bolts to 54 N.m (40 ft. lbs.).
3. Install the A/C compressor onto the mounting bracket.
