Tire Pressure Monitor Module - Blue 6 Way Connector End View

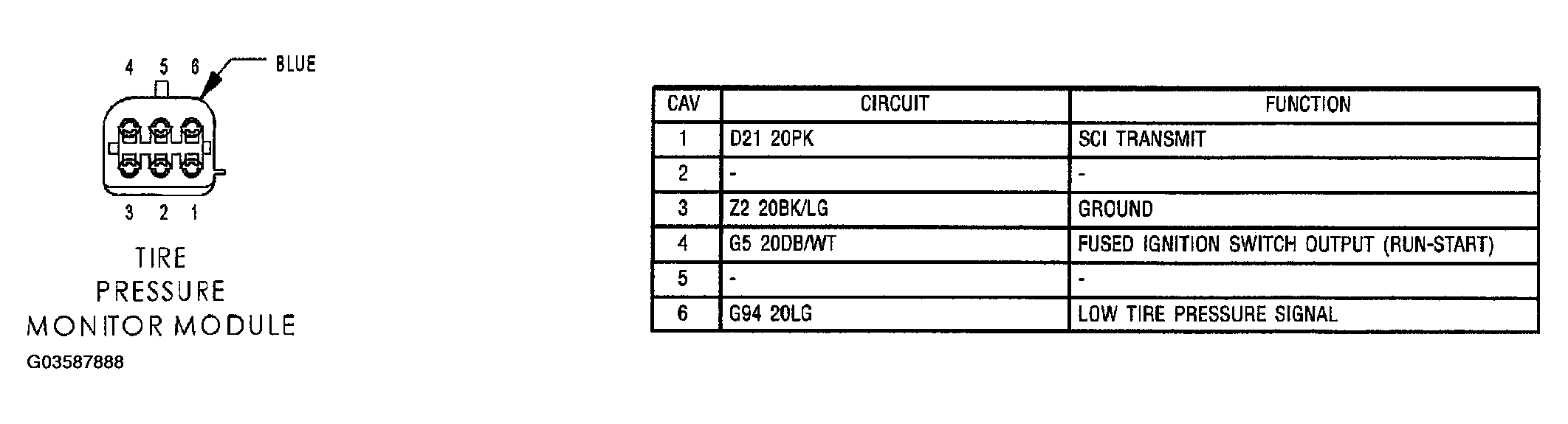

Fig 1: Tire Pressure Monitor Module Connector End View
G03587888Courtesy of DAIMLERCHRYSLER CORP.
