Body Control Module C4 - Black/Gray 34 Way Connector End View

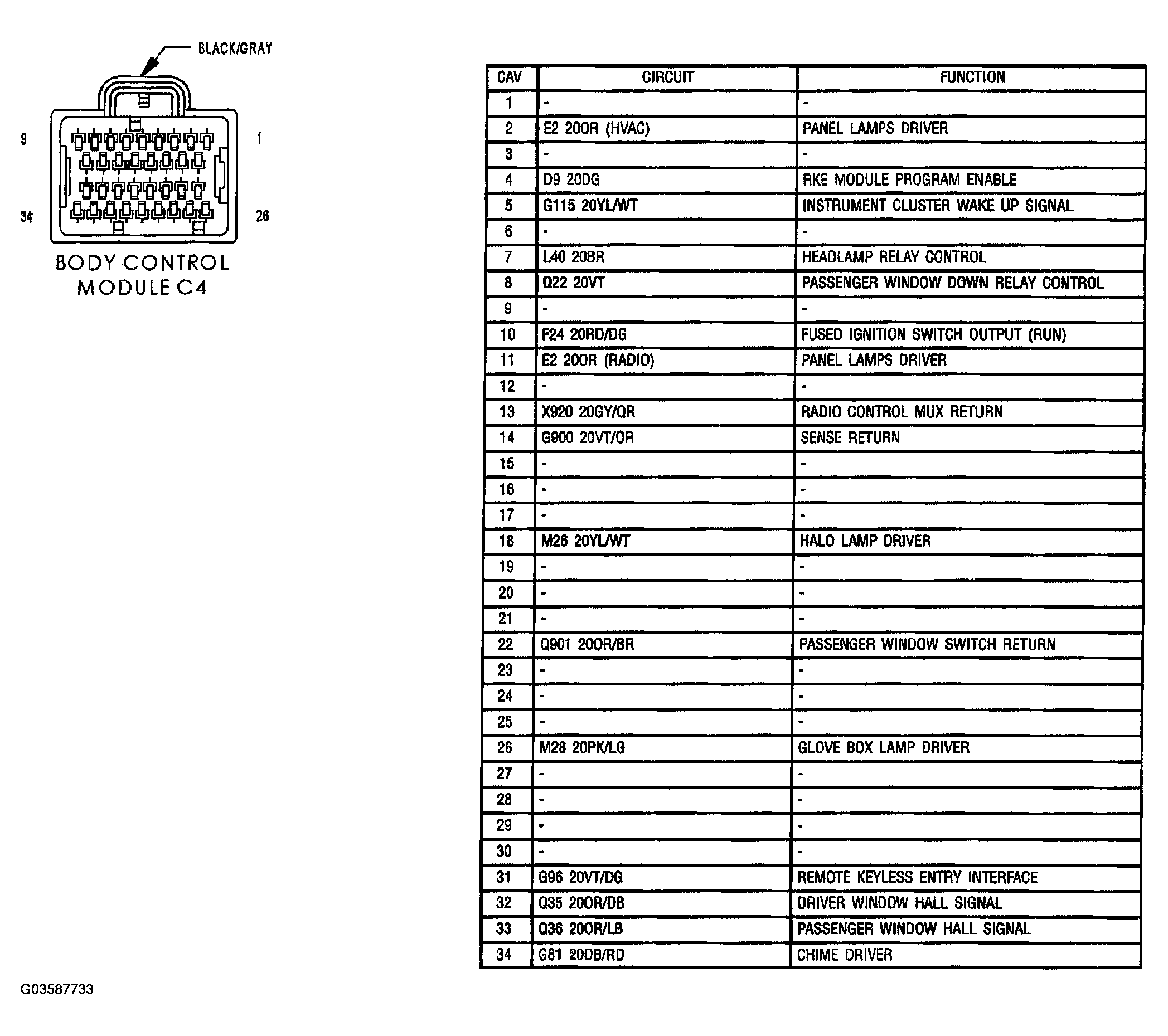

Fig 1: Body Control Module Connector End View (C4)
G03587733Courtesy of DAIMLERCHRYSLER CORP.
