Body Control Module C1 - Black 6 Way Connector End View

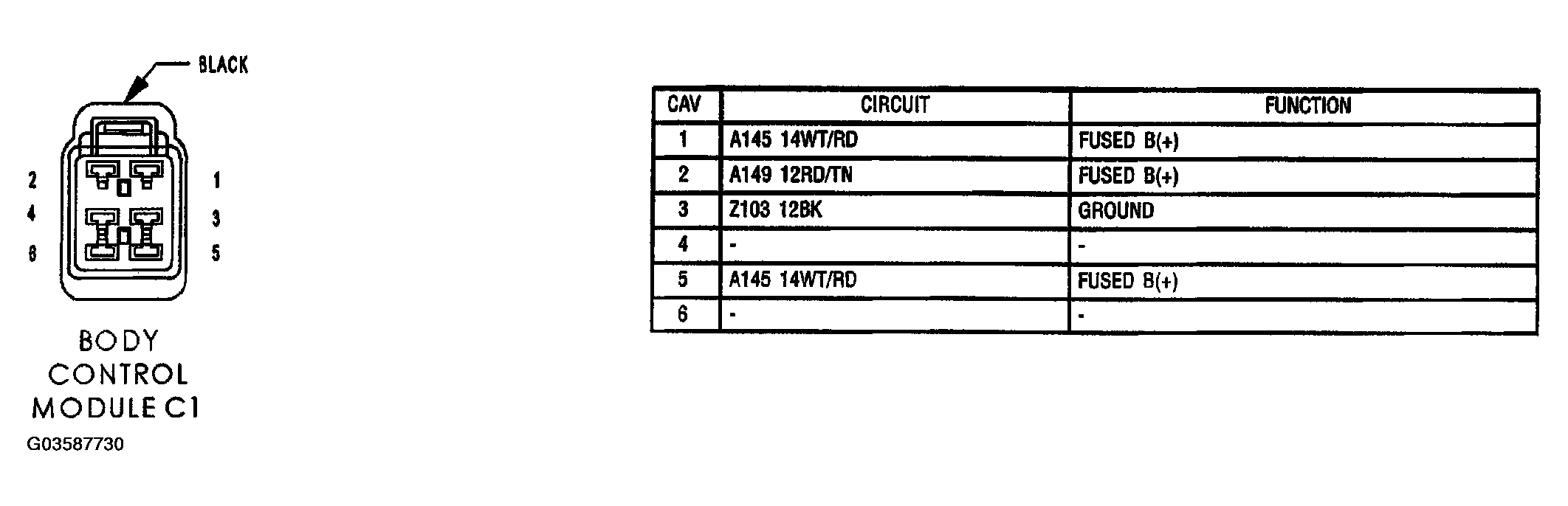

Fig 1: Body Control Module Connector End View (C1)
G03587730Courtesy of DAIMLERCHRYSLER CORP.
