Controller Antilock Brake: Removal
- Disconnect battery negative (-) terminal.
- Raise vehicle.
- Remove left front tire and wheel assembly. (Refer to REMOVAL - TIRE AND WHEEL ASSEMBLY
)
- Remove access panel in forward portion of left front wheel well.

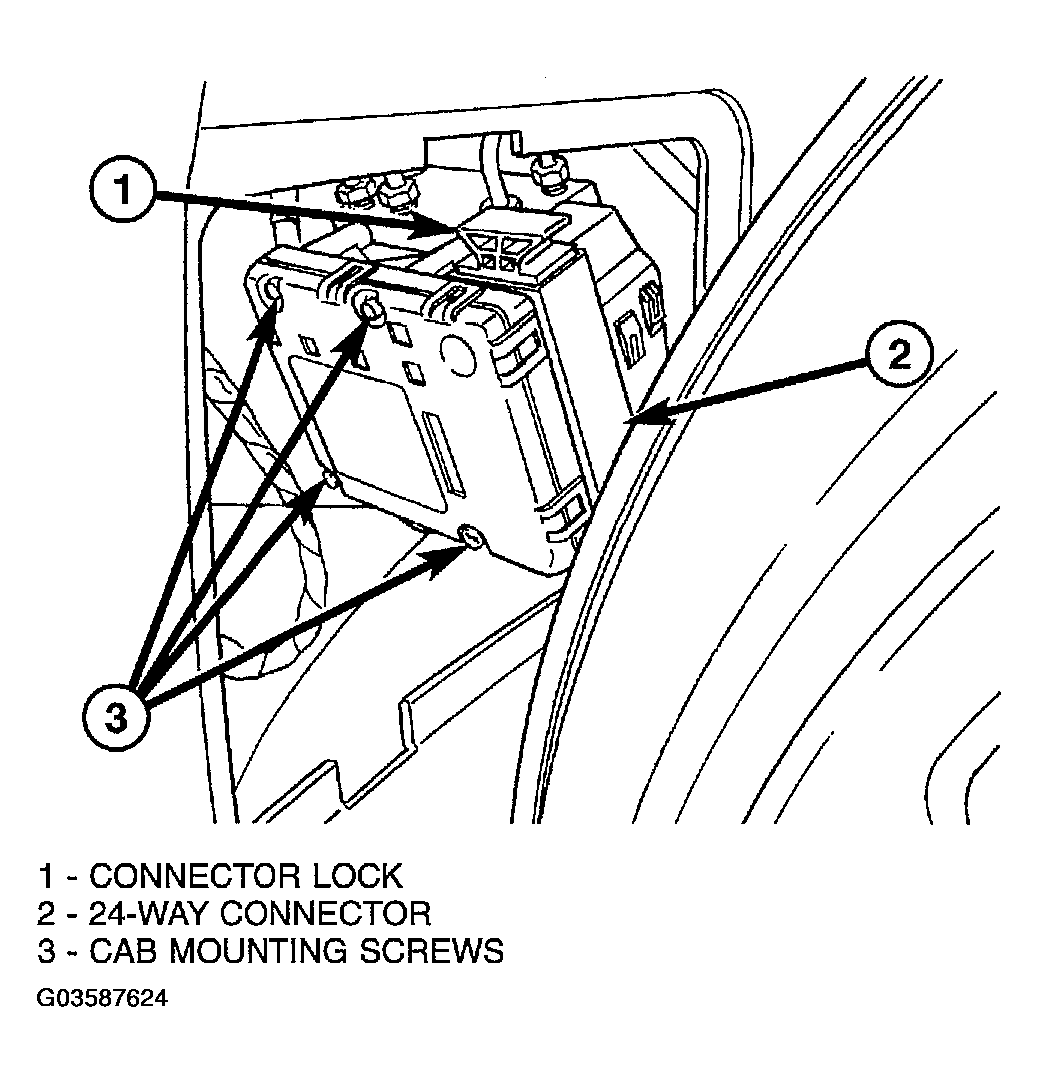

- Pull outward on connector lock and disconnect 24-way connector at CAB (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.

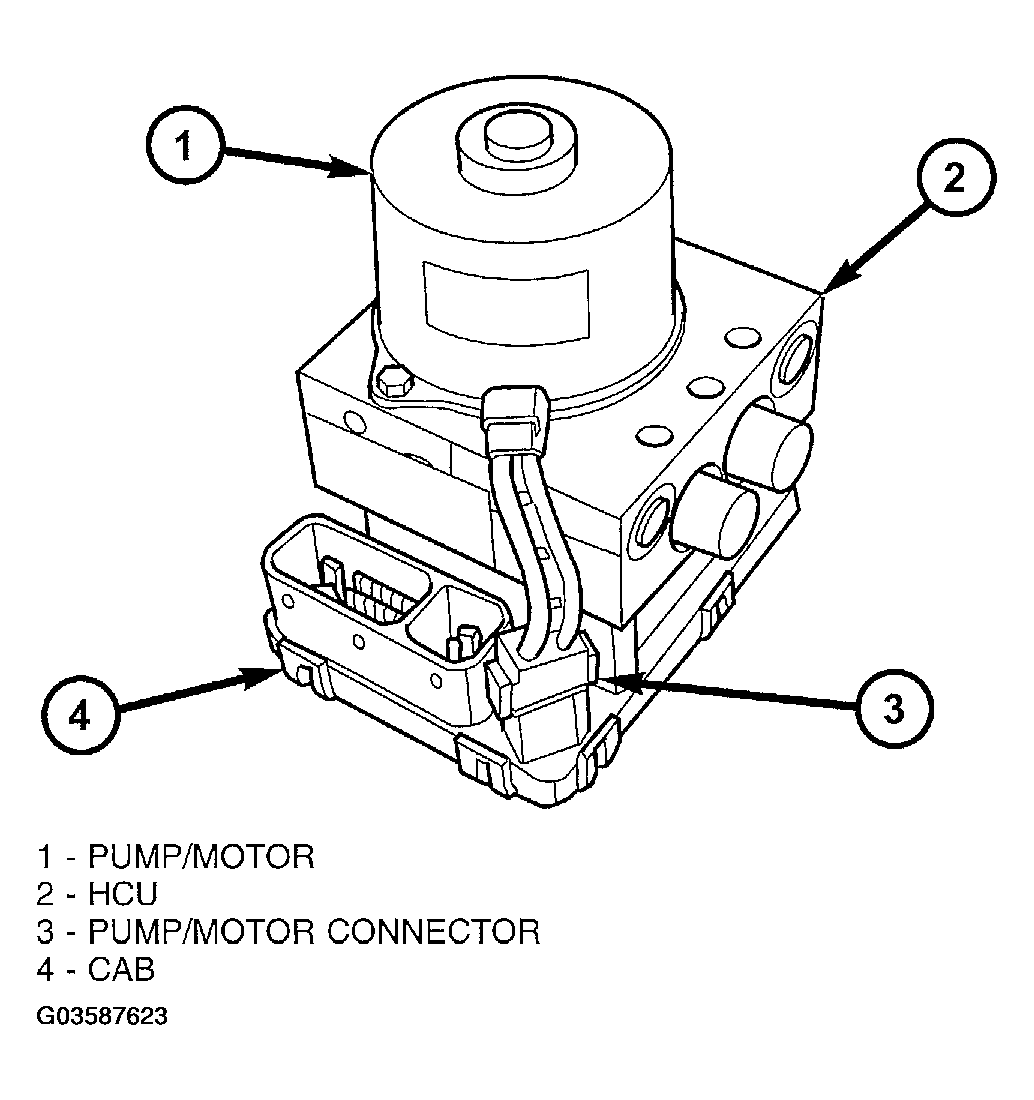

- Disconnect pump/motor wiring harness connector at CAB (Figure
).
- Remove four CAB mounting bolts (Fig 1
).
- Slide CAB off HCU and remove.
